2 Phase 4 Wires 10mm Micro Metal Gearmotor Stepper Motor With
encoder
This is a combination of a 10MM micro stepper motor and a 10 * 12
precision metal gearbox, with an encoder.
The basic step angle of the motor is 18 degrees, which is 20 steps
per revolution. Combined with the deceleration effect of the
gearbox, the final resolution of the motor rotation angle can reach
0.05-6 degrees, which can be used for various requirements.
Accurately control the rotation position of the magnetic field.
Gearbox gear ratio: 1:2,1:5,1:10, 1:15,1:20,1:30, 1:36,1:50,
1:63,1:67,1:89,1:100, 1:110,1:120,1:150, 1:172,
1:210,1:250,1:275,1:298,1:380, 1:420, 1:500, 1:600, 1:1000.
Customers can match the gear ratio according to different torque
and speed requirements.
Given an appropriate driving frequency, a stepper motor can achieve
the determination of speed and torque.
The power input section and standard stepper motor can be used as
probe structures, FPC, FFC, PCB cables, and other forms.
The partial output of the motor can be used for various output
structures, such as circular shafts, D-axes, etc!
Mechanical Dimension:MM
Typical Applications
- Saliva Analyzer
- Blood Analyzer
- Welding Machine
- Intelligent Security Products
- Fiber Fusion Splicer
- Digital Electronics
Specifications
| PRODUCT NAME | 10mm geared stepper motor |
| MODEL | SM10-50G-35M3-2CH encoder |
| RESISTENCE | 40Ω±7% |
| Lead length | 75mm |
| Motor step angle | 18 deg |
| Gear ratio | 1:50 |
| OPERATING TEMPERATURE RANGE | -0~+55 ℃ |
| OEM & ODM SERVICE | AVAILABLE |
Type of Wire Connect
Motor input method with Pin type,FPC, PCB, Lead wire etc.
These can be customized according to customer needs.
Shaft Type
Out shaft standard as follows,also can customerized due to the user
drawings
welcome to contact customer service for more types
Round Type : DIA3mm. 4mm. 5mm
D-cut Type: DIA3-D2.5 DIA4-D3 etc
Screw Type: M3 M4 M5 Serial
Trape Type
I-cut Type: DIA3-I2 DIA4-I3
Other Type: Shaft with a hole etc
Type of Fixture Cover
The regular models are shown in the figure, and the special sizes
can be customized.

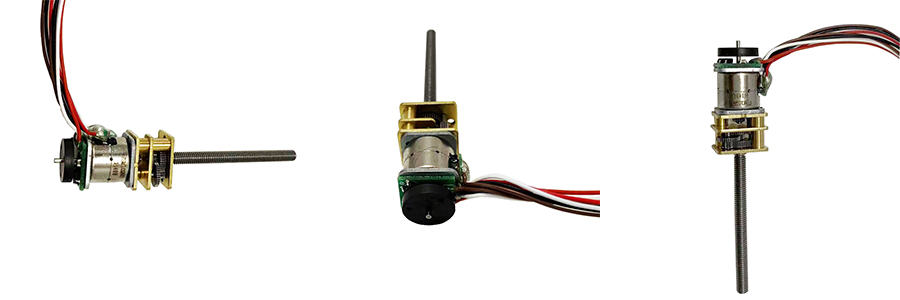

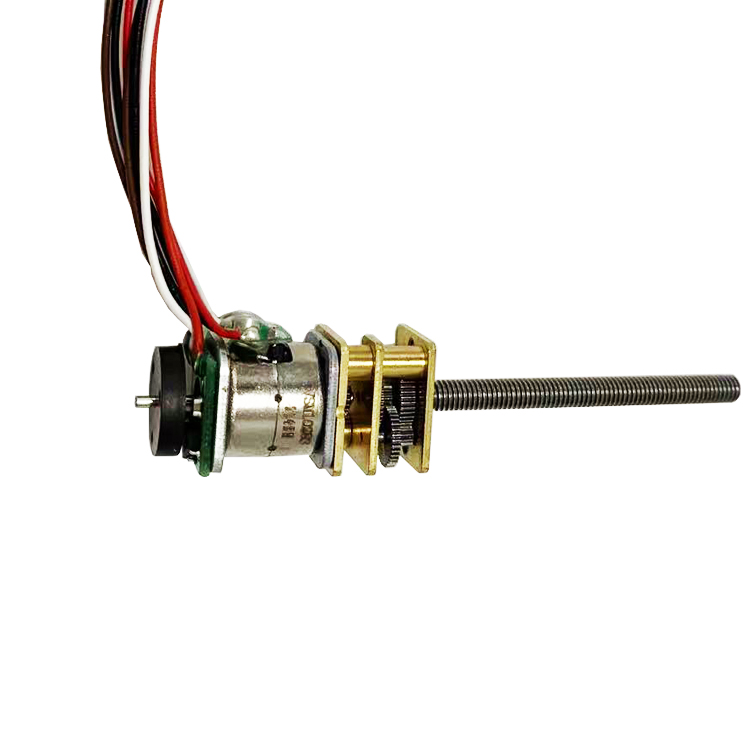

Product Detail Presentation
