Trapezoidal Screw 6.35mm Diameter With Anti Backlash Nut Hybrid Stepping Motor

Ask Lasest Price
Brand Name :	VIC-TECH
Model Number :	Tr6.35
Certification :	RoHS
Price :	$36.40 - $60.00 / Units
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	10000Units per month
Delivery Time :	15-30 work days

Add to Cart

Product Details
Company Profile

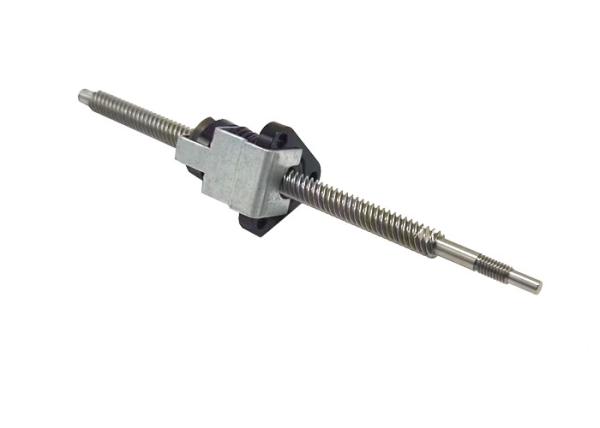

Trapezoidal Screw 6.35mm Diameter With Anti Backlash Nut Hybrid Stepping Motor

High precision hybrid stepping motor 6.35mm diameter trapezoidal screw with anti-backlash nut can be customized

This is our lead screw shaft with an anti-back lash nut.

There are different pitch, starts and lead for you to choose. (Lead=pitch*starts)

The outer diameter of lead screw is 6.35mm, which is suitable for 35mm (NEMA14) and 42mm (NEMA17) Hybrid stepper motors.

All of our lead screws are customized, and MOQ is 50 pcs.

Our team has more than 10 years of experience in stepper motor design, development and production, and can realize product development and auxiliary design according to the special needs of customers! Customer needs are our efforts, please feel free to contact us!

Mechanical Dimension:MM

Technical Features

Product	Lead screw + Anti-backlash nut
Nut type	Adjustable spring anti-backlash nut
Lead screw type	Trapezoidal screw
Lead screw model	Tr6.35*8.4582-6
Outer diameter	6.35mm
Starts number	6
Lead	8.4582mm
Pitch	1.4097mm
MOQ	50 pcs

* ** Description of the content

About the trapezoidal screw and nut related instructions
Screw material	45# 40Cr YF45MnV SUS304 SUS316 etc
Nut material	Phosphor bronze,Zinc tin bronze,Aluminum zinc bronze Brass,Ductile iron,stainless steel ,Nylon
Accuracy level	7 level 8 level 9 level
Processing method	Cutting processing Roller extrusion
Processing range	single head, multiple heads, various tooth types
Sweeping direction	left-handed right-handed

Srew Datasheet

No.	Spec model	Outer dia	Lead	Thread No.	Tooth distance	Outer dia
1	Tr3.5*1-N1-RH	3.5	1	1	1	3.5	3.475
2	Tr3.5*0.6096-N1-RH	3.5	0.6096	1	0.6096	3.5	3.475
3	Tr3.5*2.4384-N2-RH	3.5	2.4384	2	1.2192	3.5	3.475
4	Tr4-RH	4				4	3.975
5	Tr5*1-N1-RH	5	1	1	1	5	4.975
6	Tr5*2-N2-RH	5	2	2	1	5	4.975
7	Tr5*4-N4-RH	5	4	4	1	5	4.975
8	Tr5*6-N6-RH	5	6	6	1	5	4.975
9	Tr6*1-N1-RH	6	1	1	1	6	5.975
10	Tr6*2-N2-RH	6	2	2	1	6	5.975
11	Tr6*4-N4-RH	6	4	4	1	6	5.975
12	Tr6*6-N6-RH	6	6	6	1	6	5.975
13	Tr6*12-N6-RH	6	12	6	2	6	5.975
14	Tr6*12-N12-RH	6	12	12	1	6	5.975
15	Tr8*1-N1-RH	8	1	1	1	8	7.975
16	Tr8*3-N2-RH	8	3	2	1.5	8	7.975
17	Tr8*2-N1-RH	8	2	1	2	8	7.975
18	Tr8*4-N2-RH	8	4	2	2	8	7.975
19	Tr8*8-N4-RH	8	8	4	2	8	7.975
20	Tr8*10-N5-RH	8	10	5	2	8	7.975
21	Tr8*12-N6-RH	8	12	6	2	8	7.975
22	Tr8*14-N7-RH	8	14	7	2	8	7.975
23	Tr8*16-N -RH	8			2	8	7.975
24	Tr8*20-N -RH	8			2	8	7.975
25	Tr9*24-N24-RH	9	24	24	1	9	8.975
26	Tr10*1-N1-RH	10	1	1	1	10	9.975
27	Tr10*1-N2-RH	10			1	10	9.975
28	Tr10*2-N1-RH	10	2	1	2	10	9.975
29	Tr10*3-N2-RH	10	3	2	1.5	10	9.975
30	Tr10*4-N2-RH	10	4	2	2	10	9.975
31	Tr10*8-N4-RH	10	8	4	2	10	9.975
32	Tr10*10-N5-RH	10	10	5	2	10	9.975
33	Tr10*12-N6-RH	10	12	6	2	10	9.975
34	Tr10*14-N -RH	10			2	10	9.975
35	Tr10*20-N -RH	10			2	10	9.975
36	Tr12*2-N1-RH	12	2	1	2	12	11.975
37	Tr12*3-N1-RH	12	3	1	3	12	11.975
38	Tr12*8-N4-RH	12	8	4	2	12	11.975
39	Tr12*4-N -RH	12			2	12	11.975
40	Tr12*12-N -RH	12			2	12	11.975
41	Tr12*10-N4-RH	12	10	4	2.5	12	11.975
42	Tr12.7*12.7-N5-RH	12	12.7	5	2.54	12	11.975
43	Tr14*3-N -RH	14			3	14	13.975
44	Tr14*4-N -RH	14			4	14	13.975

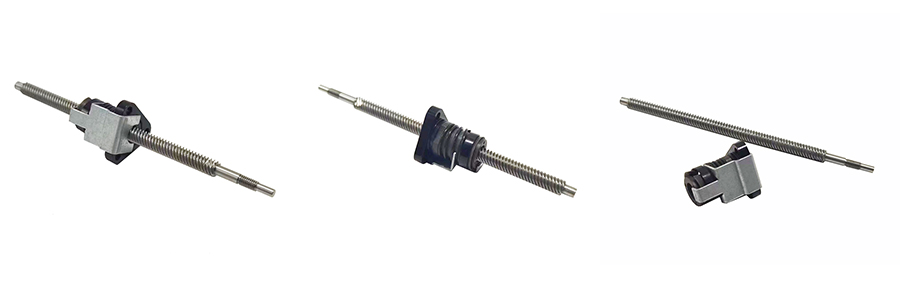

Product Detail Presentation
