Brand Name : | VIC-TECH |
Model Number : | GM16-030-297G-13D |
Certification : | RoHS |
Price : | $3.2~$6/unit |
Payment Terms : | T/T, Western Union, MoneyGram |
Supply Ability : | 1000000Units per year |
Delivery Time : | 15-30 work days |
N30 DC circular motor, beautiful appearance, small size, light
weight, easy installation, long life, low noise technology, high
energy saving rate, zero momentum, large torque and high precision.
1: Circular gearbox, equipped with N30 permanent magnet DC motor
2: Meet EU environmental protection standards. Low energy
consumption and low noise
3: Can be equipped with encoder. The number of pulses is 3ppr
4: Gearbox gear ratio: 1:10, 1:16, 1:20, 1:30, 1:35, 1:39, 1:50,
1:62, 1:66, 1:87, 1:102, 1:153, 1:169, 1:210, 1:243:1, 1:297, 1:350
Our team has more than 10 years of experience in micromotor design,
development and production, and can realize product development and
auxiliary design according to customer needs!
Your needs are our efforts, welcome to contact us at any time!
Specifications
Product Name | N30 DC motor with gearbox Motor | |||
Model | GM16-030-297G-13D | |||
Rated Voltage | 3 V DC | |||
No load speed | 50 RPM | |||
No load current | 220 mA | |||
Rated speed | 31 RPM | |||
Rated current | 660 mA | |||
Rated torque | 0.7 kgf.cm | |||
Stall torque | 2.5 kgf.cm | |||
Stall current | 2.3 A | |||
Gear Ratio | 1:297 | |||
Noise | <45dB | |||
Back lash | 3 deg | |||
Life time | 200 h |

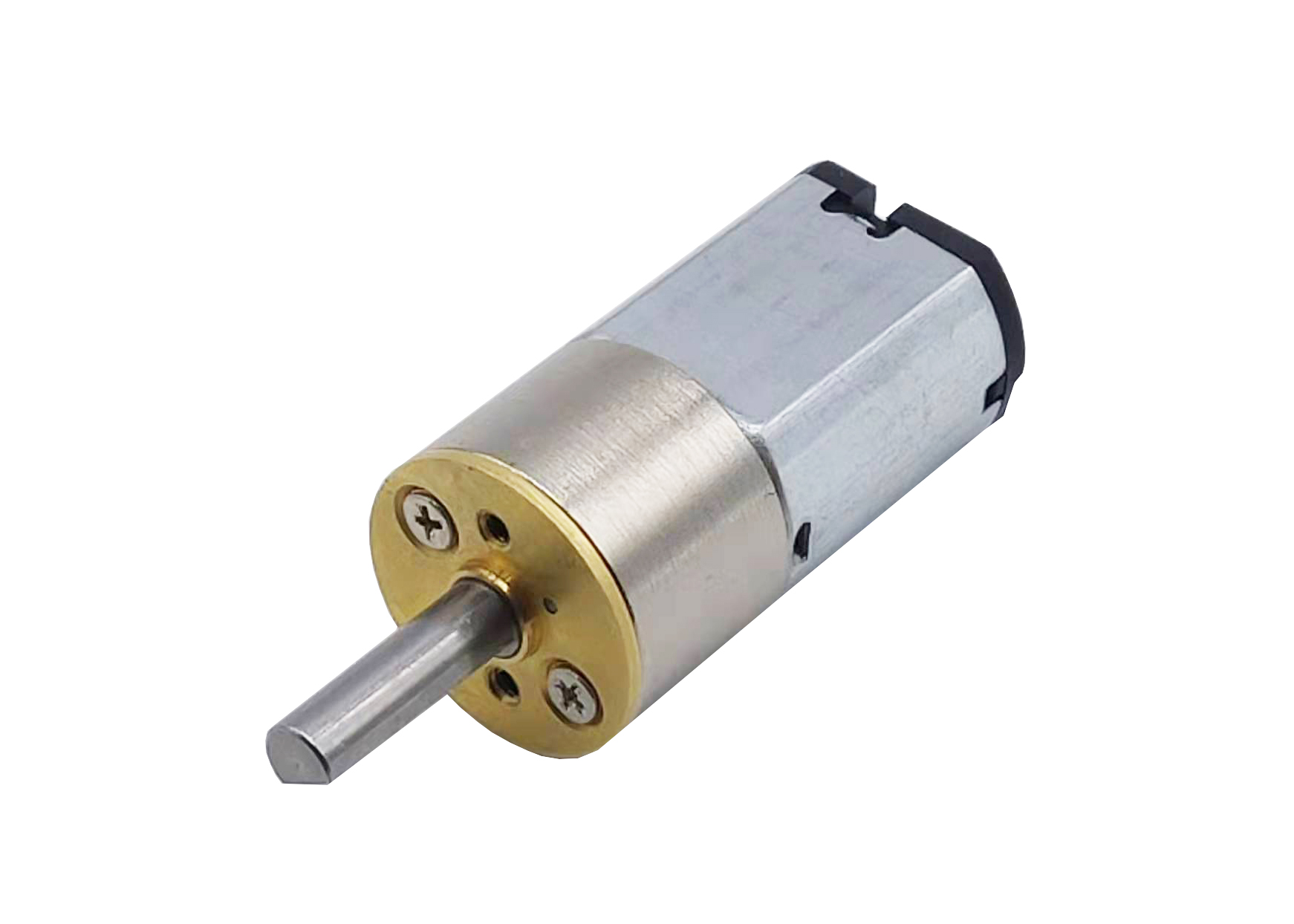

Product Detail Presentation
![]() |
