25mm PM Linear Motor Valve 3.3vDC High Quality Geared stepper motor
for Valve Control
Description:
This product is mainly used in printers, valves, fluid control,
position control and other fields, the motor has the
characteristics of small size, high precision, large intensity and
so on.
The stepper motor built-in reduction gearbox, to achieve 1:10
reduction ratio, improve the torque, the final use of the output
terminal with a stop structure, so as to achieve the top bar
without rotation before and after the movement of the function.
Thrust general
Above 10 kg.
At the same time outside the wiring part can be used in accordance
with customer requirements of various types and length of the line,
or FFC FPC and so on.
The shape and outlet angle of the panel can be adjusted according
to the customer's needs!
This motor is a dia 25pm type stepper motor, fixing a gear box. and
a lead screw and nut, also with anti-rotation structure.so that the
out push can move up and down.
NOTED:
The output shaft of the motor can be customized according to
customer installation requirements.
application:
Valve application
Household Appliances Air Conditioning
refrigerator smart bathroom
Automatic Door Lock CCTV Monitor
Electronic equipment
Motor Parameters:
| Motor type | Permanent magnet motor with gearbox |
| Motor diameter | 25mm |
| Voltage | 3.3V DC~5VDC |
| Step Angle | 7.5°/10 |
| No.of Phase | 2 phase |
| Coil resistance | 5Ω±7% phase |
| STARTING FREQUENCY | 750PPS min. (AT 2.6V DC) |
| RESPONSE FREQUENCY | 800 PPS min. (AT 3.0V DC) |
| DENTENT TORQUE | 60g.cm |
| RATATION | CW/CCW |
Design drawing:

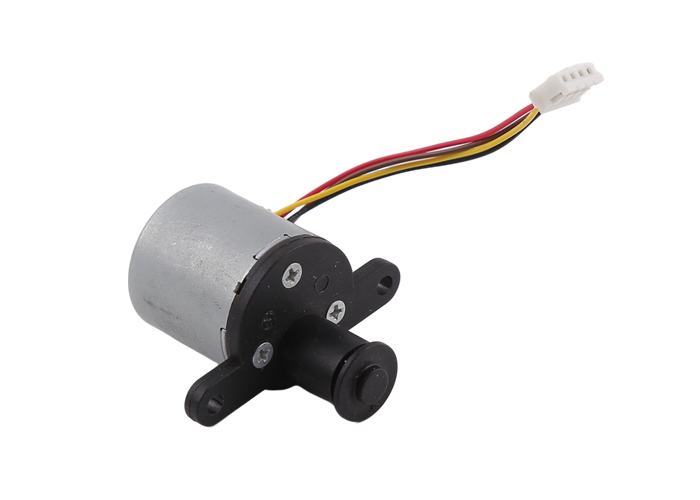

Product display:
Micro Geared Stepper Motor 2-phase 4-wirer Bipolar stepping motor
Application of stepper motors:
SM25-048S-30G stepper motor is used for precision control and is
widely used in medical equipment, 3D printers, industrial precision
control, automation equipment, valve applications, etc.
Stepper motors can be used in any mechanism that requires precise
control and rotational/linear motion.
If this motor does not meet your installation needs, we also
recommend other diameter motors for you, if you have any questions,
you can feel free to contact me
These specification applies to the Permanent Magnet STEPPING MOTOR,
Model name is SM25-048S-8118G.This motor stepper is a dia 25pm type
stepper motor stepper, fixing a gear box.so that the torque can
higher
for mounting we have two type standard.
Packaging and Shipping information:
Samples are packed with foam sponge inside paper box.
For mass production, products are packed in paper carton.
For sea shipping (Mass production), cartons are packed on pallet.
Shipping time:
By express(DHL/ UPS/ Fedex/ TNT): 5~12 days
By 4PX express: 10~20 days
Sea shipping: 40~60 days (depends on different countries)
