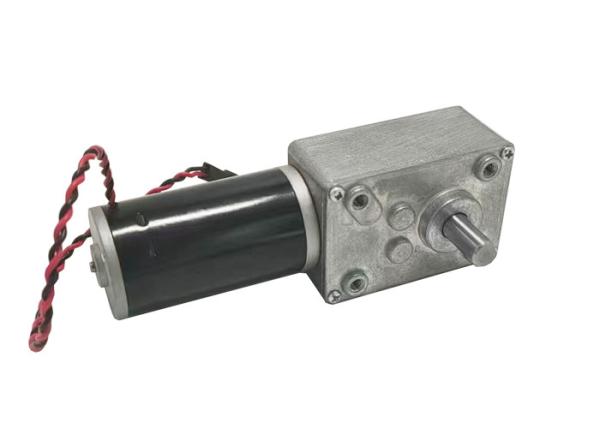

634JSX218-31ZY High torque 24v DC motor gear stepper motor with
gearbox motor
High-torque reduction motor gearbox DC 24V motor, voltage: DC24V,
reduction ratio: 218:1, no-load speed: 41RPM; Features: -The motor
is a geared DC motor with a miniature worm gear, you can change the
wiring method to change the motor rotation . The worm gear motor is
self-locking, that is, when the motor is not energized, the output
shaft is fixed and self-locking.
Applicable to: Widely used in windows, remote control curtains,
micro door openers, barbecue grills, ovens, washing machines,
garbage disposal machines, coffee machines, printing machines,
household appliances, mini winches and other occasions.
Mechanical Dimension:MM
Typical Applications
- Saliva Analyzer
- Blood Analyzer
- Welding Machine
- Intelligent Security Products
- Fiber Fusion Splicer
- Digital Electronics
Specifications
| Product Name | Wrom Geared stepper motor |
| Model | 634JSX218-31ZY |
| Rated Voltage | 24 V DC |
| Motor Rated output speed (without gearbox) | 9000 RPM |
| No-load speed (without gearbox) | 41RPM |
| No-load speed (with gearbox) | 30RPM |
| Gear vatio | 218:1 |
| Rated Current | ≤1600 mA |
Rated torque | 12KGF*cm |
| Output rotation | CW direction to be confirmed |
Type of Wire Connect
Motor input method with Pin type,FPC, PCB, Lead wire etc.
These can be customized according to customer needs.
Shaft Type
Out shaft standard as follows,also can customerized due to the user
drawings
welcome to contact customer service for more types
Round Type : DIA3mm. 4mm. 5mm
D-cut Type: DIA3-D2.5 DIA4-D3 etc
Screw Type: M3 M4 M5 Serial
Trape Type
I-cut Type: DIA3-I2 DIA4-I3
Other Type: Shaft with a hole etc
Type of Fixture Cover
The regular models are shown in the figure, and the special sizes
can be customized.
Product Detail Presentation
