5Vdc gear motor 10mm screw motor stepper motor with encoder
suitable for medical equipment
This product consists of a micro stepper motor with an outer
diameter of 10MM and a precision metal reducer. The commonly used
gear reduction ratios for the motor are 1:2 1:5 1:10 1:15 1:20 1:30
1:36 1:50 1:63 1:67 1:89 1:100 1:110 1:150 1:172 1:210 1:250 1:275
1:298 1:380 1:420 1:500 1:600 1:1000. The reduction ratios can be
customized according to customer needs.
The conventional lead screw for the output shaft of the motor is
M3P0.5, and the diameter of the D-axis is 3mm D2.5mm. The output
shaft type can also be customized according to customer
installation
For motor connection, it is usually a connecting wire, and output
methods such as bare needle and FPC can also be customized
All parts of the product are processed on precision equipment and
adopt advanced and reliable assembly processes, making the product
characterized by high transmission efficiency, low noise, and high
reliability.
Mechanical Dimension:MM
SM15-18.6L- external shaft Specification:
Product Name | 10mm mini gear box stepper motor |
Model | SM10-50G-35M3-2CH-ENCODER |
Resistence | 40Ω±7%/phase |
Step angle | 18° |
Motor diameter | 10mm |
Phase | 2 |
Gear Ratio | 1:21~1:1030 |
Certification | RoHS |
| Voltage | 5V |
Motor length | 27.5mm |
OEM&ODM Service | Available |
Product features:
Application:
Robotics field: Micro geared stepper motors can be used as joint drivers for
robots to realize precision control and movement of robots.
Automation equipment field: micro-geared stepper motors can be applied to various equipment in
automated production lines, such as conveyor belts, printing
equipment, packaging machinery, etc., to realize automation control
and precise positioning.
Medical equipment field: micro-geared stepper motors can be applied to precision control in
medical equipment, such as surgical robots, medical cameras,
medical syringes and so on.
Electronic equipment field: micro-geared stepper motors can be used for precision control of
various electronic equipment, such as precision instruments,
digital cameras, auto-focusing mechanism.
Automotive components field: micro-geared stepper motors can be applied to precision control of
automotive components, such as volume adjustment of car audio,
window lifting, electric mirrors and so on.

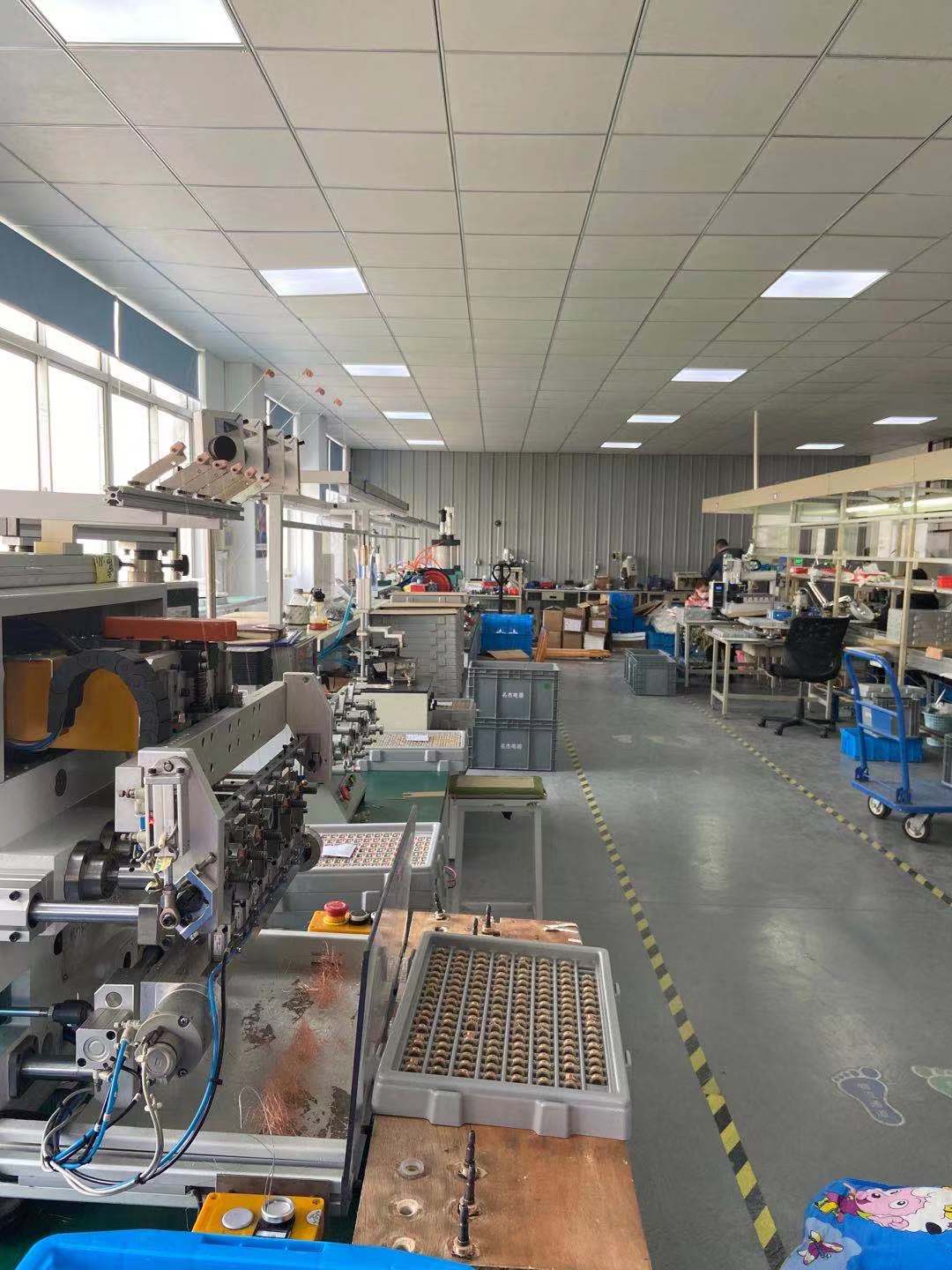

Production workshop:
TYPE of FIXTURE COVER:
The regular models are shown in the figure, and the special sizes
can be customized.
TYPE of WIRE CONNECT:
Motor input method with Pin type
, FPC, PCB, Lead wire etc. These can be customized according to
customer needs.
TYPE of SHAFT:
Out shaft standard as follows,also can customerized due to the user
drawings
welcome to contact customer service for more types
- Round Type :DIA3mm. 4mm. 5mm
- D-cut Type: DIA3-D2.5 DIA4-D3 etc
- Screw Type: M3 M4 M5 Serial
- Trape Type
- I-cut Type: DIA3-I2 DIA4-I3
- Other Type: Shaft with a hole etc
