Voltage 5V diameter 15mm double stack 4 wire 2 phase 18° step angle
dual motor
The stepping motor with a diameter of 15 has a stepping angle of
18degrees. Each part is made of precision molds. Therefore,
compared with similar products, this product has the advantages of
stable rotation, small positioning torque and high efficiency.
All metal parts such as motor casings are treated by
environmentally friendly plating. The appearance is exquisite and
can be used in relatively harsh environments.

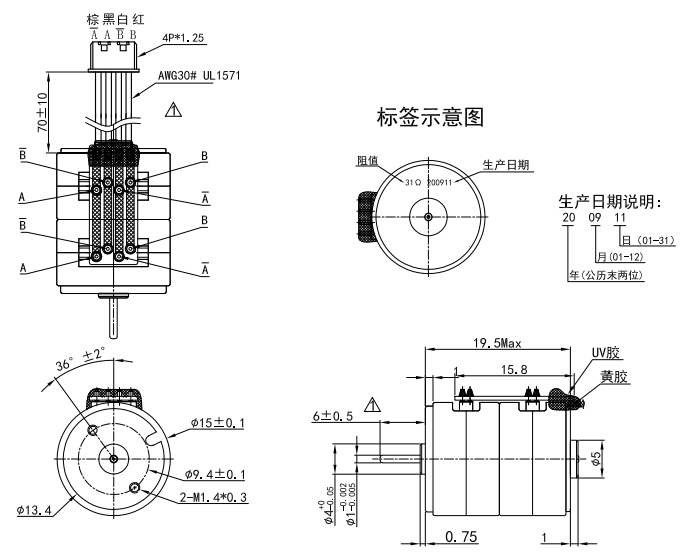

Mechanical Dimension:MM
Technical Features
15mm double stacked motor is our new developed 15mm motor, designed
specifically for higher torque requirement, compared to regular
15mm motors.
It has 2 times of length, and about 1.6 times of torque compared to
a regular 15 mm stepper motor.
The motor can also be attached with different types of gearboxes,
such as worm gearboxes.
Also, the coil resistance can be customized based on customers
requirement.
Please feel free to contact us if you want to order our 15mm
motors.
Typical Applications
Medical instruments
Precision instrument
Robot
Factory automation
Game machine
ATM equipment
Security equipment
Parameters:
| Product name | 15mm double stacked motor |
| Rated voltage | DC 5V |
| Phase number | 2 phases |
| Coil resistance | 31Ω±10% |
| Exciting mode | 2-2 |
| Insulation level | F class |
| Max pull out frequency | 1300 Hz min |
| Max pull in frequency | 800 Hz min |
| Pull out torque | 10.5 gf*cm (500PPS) min |
Competitive Advantage
Torque Curve For Reference
Type of Fixture Cover
The regular models are shown in the figure, and the special sizes
can be customized.
Type of Wire Connect
Motor input method with Pin type, FPC, PCB, Lead wire etc.
These can be customized according to customer needs.
Product Detail Presentation
