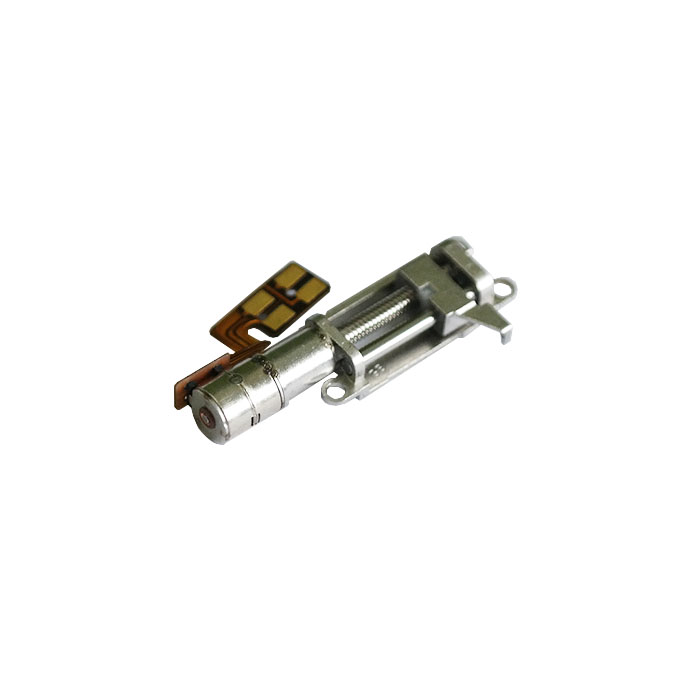

Micro 5mm diameter linear stepper motor with gearbox and slider

This motor is a 5mm diameter stepper motor, attached with 20.25:1 gear ratio gearbox.

This is a linear stepper motor, and the lead screw pitch 0.4mm, and it has 6 starts, so lead of lead screw is 2.4mm.

The effective stroke of this motor is about 8mm, and slider can move up and down based on driver’s set up.

This motor has very small size and can be used on high precision electrical and electronic devices.

Please feel free to contact us if you want to order samples.

Mechanical Dimension:MM

Typical Applications

• Intelligent Security Products

• Camera Lenses

• Door Locks

• Wearable device




Specifications

Competitive Advantage

• High quality and the best price.
• Fast deliver,storage company and rich inventory
• Near Shanghai port, the traffic is very convenient.

Type Of Wire Connect For Reference

Motor input method with Pin type, FPC, PCB, Lead wire etc.

These can be customized according to customer needs.
