    Mini 5V 25mm 15 degree step angle permanent magnet linear stepper motor with lead screw

    Ask Lasest Price
    Brand Name : VIC-TECH
    Model Number : VSM25-24S-0254-30-01
    Certification : RoHS
    Price : $6.5~$30/Unit
    Payment Terms : Western Union, T/T, L/C, MoneyGram
    Supply Ability : 1000000 Units/year
    Delivery Time : 20-30 work days
    • Product Details
    • Company Profile

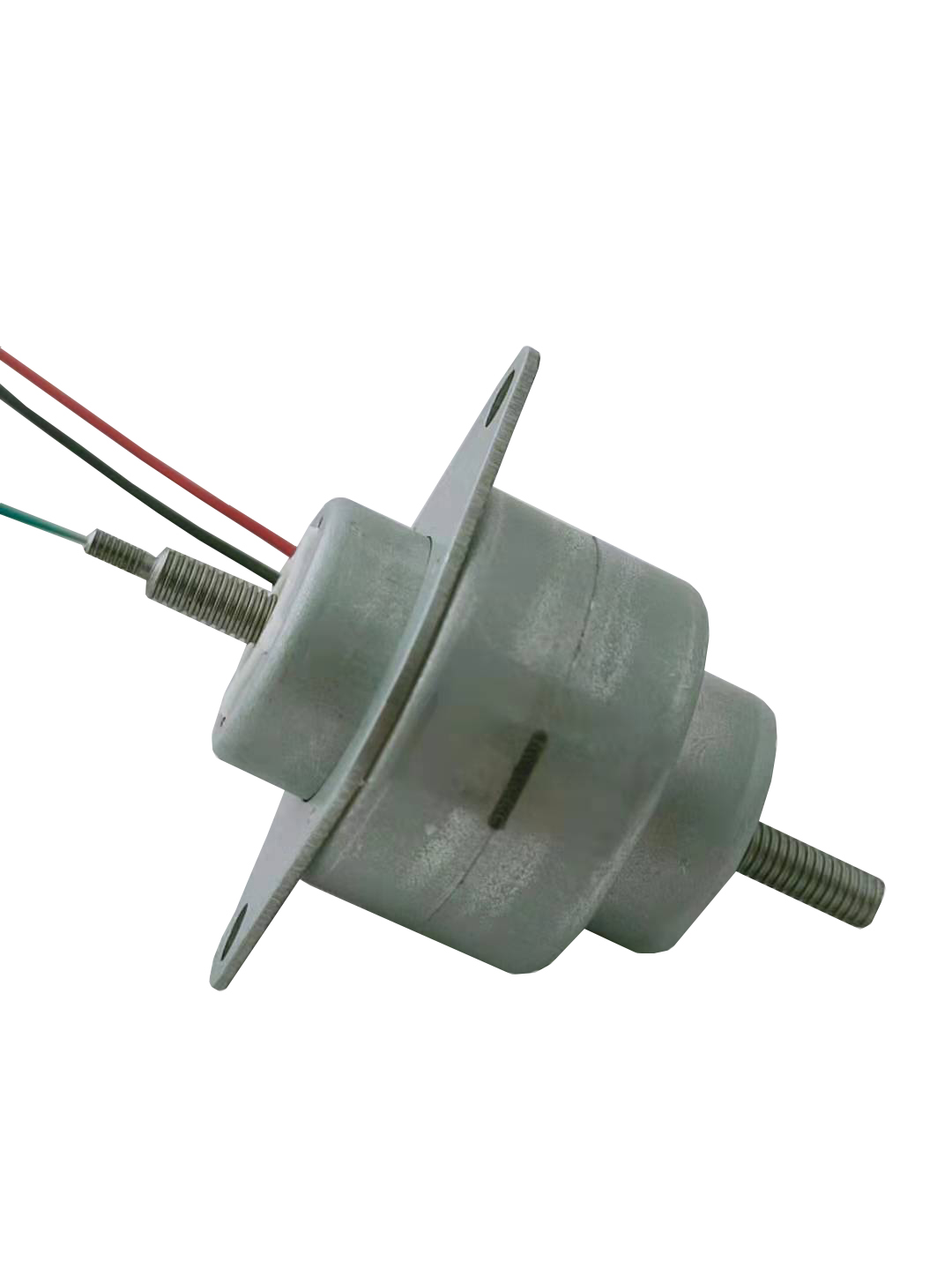

    Mini 5V 25mm 15 degree step angle permanent magnet linear stepper motor with lead screw

    Mini 5V 25mm 15 degree step angle permanent magnet linear stepper motor with lead screw


    VSM25-24S is an external linear stepping motor with a stepping angle of 15 degrees. This product is a patented product of our company. It transforms the rotation of the motor into linear motion through the relative movement of the internal rotor and the lead screw. Mainly used in valve control, automatic buttons, medical equipment, textile machinery, robots and other related fields. At the same time, the external wiring part can adopt four binding posts (light needles) or connecting wires, or FPC FFC PCB, etc. according to customer requirements. The output part is linear.
    Our team has more than 10 years of experience in stepper motor design, development and production, and can realize product development and auxiliary design according to the special needs of customers! Customer needs are our efforts, please feel free to contact us!

    Mechanical Dimension:MM

    Technical Features


    This product is a patented product of the company. It converts the rotation of the motor into a linear motion through the relative
    movement of the internal rotor and the screw. It is mainly used in valve control, automatic buttons, medical equipment, textile
    machines, robots and other related fields.
    At the same time, the external wiring part can use four terminal posts (light pins) or connecting wires, or FPC FFC PCB, etc.

    according to customer requirements.
    The output part is linear.

    Typical Applications

    • Medical Equipment

    • Automatic Control

    • 3D Printer

    • Precision Calibration

    • Precision Fluid Measurement

    • Precise Position Movement

    Specifications

    Product Name

    PM25 linear stepper motor

    Model

    SM25-019L-Captive type

    Resistance

    13Ω±10%

    Pull in frequency

    600PPS

    The Mark Thrust

    60N

    Inductance

    4.5REF (mH)

    Mounting pitch

    27±0.2 mm

    Mounting aperture

    φ3mm (Through hole)

    Axial height

    38 mm

    Insulation Class

    class E

    lead wrie

    UL 1061 AWG26

    OEM & ODM Srvice

    Available


    Competitive Advantage

    • High quality and the best price.

    • Fast deliver,storage company and rich inventory

    • Near Shanghai port, the traffic is very convenient.

    Product Detail Presentation
