    Worm Shaft Gearbox 10mm Stepper Motor With Different Reduction Ratio Options

    Ask Lasest Price
    Brand Name : VIC-TECH
    Model Number : SM10-817G
    Certification : RoHS
    Price : $3.8~$7/unit
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 1000000Units per year
    Delivery Time : 20-30 work days
    • Product Details
    • Company Profile

    Worm Shaft Gearbox 10mm Stepper Motor With Different Reduction Ratio Options

    Widely Used Worm Shaft Gearbox 10mm Stepper Motor With Different Reduction Ratio Options​

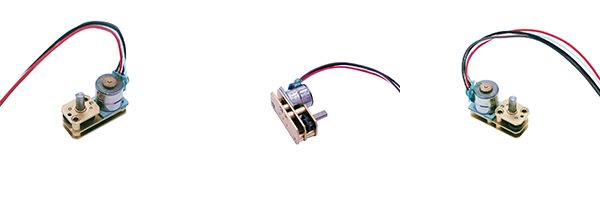

    This is a 10mm worm motor with a reduction ratio. The smaller the reduction ratio, the faster its speed, and the larger the reduction ratio, the slower its speed. The speed can be adjusted at will according to the reduction ratio

    Our team has more than 10 years of experience in the design, development and production of micro motors, so product development and auxiliary design can be realized according to the special needs of customers!
    If you need our motor, you can contact me at any time


    Mechanical Dimension:MM


    Typical Applications


    • Office Automatic Equipments
    • Printer/paper Feeder
    • Bank Equipments
    • Safe Box
    • Ad Equipment
    • Household Appliances
    • Electtric Door Locks

    Specifications


    Model No.

    SSM10-817G-00 WX

    diameter

    10mm

    Output shaft

    D shaft

    Gearbox size

    12*24*9 (v)

    Reduction ratio

    2:1,5:1,10:1,15:1,20:1,30:1,36:1,50:1,63:1,67:1,89:1,100:1,110:1,120:1,

    150:1,172:1,210:1,250:1,275:1,298:1,380:1,420:1,500:1,603:1,600:1,1000:1

    resistance

    39Ω

    Step angle

    18°

    Line length

    100mm


    Product Detail Presentation
