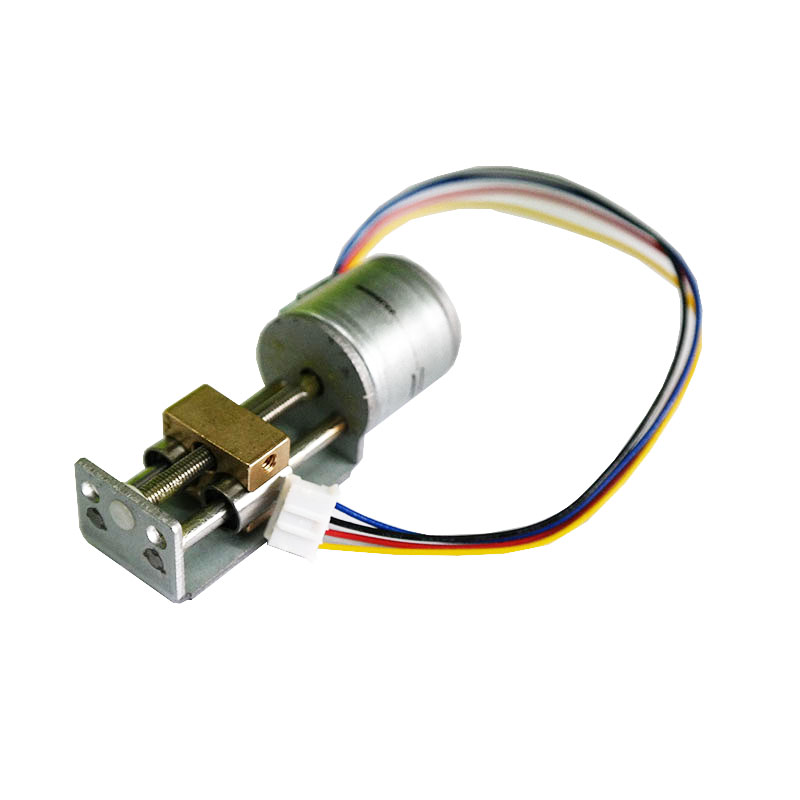

    Step Angle 18° Copper Slider Linear Stepper Motor Dia 20mm With 1kg Thrust for Camera、Optical instruments、Lenses

    Heavy duty low noise SM20-21L-T 20mm diameter copper slider 1 KG thrust linear stepper motor linear actuator

    This is 20mm linear motor. It has a copper slider with two linear bearing, with the help of linear bearings, the stability of slider is greatly improve.

    The lead screw is regular M3*0.5P thread, so when the motor rotate one turn, slider will move one pitch (0.5mm). Step angle of the motor is 18 degree, so when the motor takes 20 steps, it will rotate one turn. Step length of this motor is 0.025mm.

    This motor is very useful for precise linear control, and the thrust of the slider can reach over1 KG (over 10N of thrust)

    The stroke of this motor is 21mm.(stroke means how much distance it can travel from both ends)


    Mechanical Dimension:MM

    Parameters:

    Model No.SM20-21L-T
    Motor typeLinear stepper motor
    Phase No.2 phases
    Step angle18 degrees
    Phase resistance15.6 Ohms/phase
    Excitation method2-2 bipolar drive
    Rated voltage5 - 12 V DC
    Lead screw typeM3*0.5Pitch thread
    Stroke21mm
    Pull-out thrustOver 1200 g at 700 PPS
    Max response frequencyOver 1300 PPS

    Main Application

    1) Camera

    2) Optical instruments

    3) Lenses

    4) Precision medical devices

    5) Automatic door locks

    About linear stepper motors


    A linear stepper motor has lead screw to convert the rotation movement into linear movement. Stepper motors with lead screw can be considered as linear stepper motor.
    A slider linear stepper motor contains a bracket, slider, and supporting rods are added, based on the external drive linear motor’s design. Because supporting rods provide anti-rotation mechanism for the slider, slider can only do linear movement.
    The lead screw’s lead equals to its pitch, and when motor rotates one turn slider moves exactly one pitch of distance.
    For example, if motor’s step angle is 18°, it means it takes 20 steps to rotate one turn. If the lead screw is M3*0.5P, pitch is 0.5mm, slider moves 0.5mm for each revolution.
    Motor's step length is 0.5/20=0.025mm. This means when the motor takes one step, the linear movement of the screw/slider is 0.025mm. For motors with the same diameter and torque, the longer step length it has, fast linear speed it will have, but smaller thrust will have at the same time.
