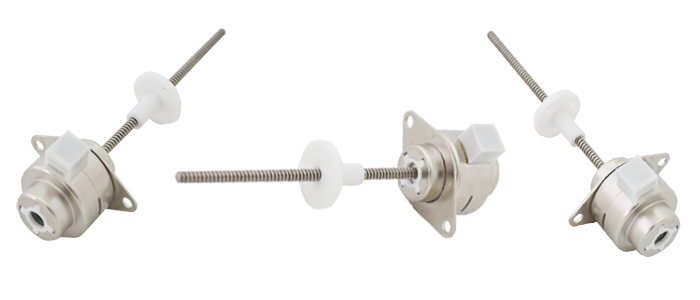

External drive 25mm Linear Actuator 2 Phase Stepper Motor With
Integrated Lead Screw with nut PM stepper linear motor
SM25-019L- External drive type is a Stepper motor whit a lead
screw, when rotor running CW or CCW,the lead screw will go forword
or backword. at the same time ,the lead will rotating.
motor stepper step angle is 7.5 degree, lead pitch is 0.6096mm,
when motor stepper rotate one step, the lead move 0.0254mm
This product is a patented product of the company. It converts the
rotation of the motor into a linear motion through the relative
movement of the internal rotor and the screw. It is mainly used in
valve control, automatic buttons, medical equipment, textile
machines, robots and other related fields.
At the same time, the external wiring part can use four terminal
posts (light pins) or connecting wires, or FPC FFC PCB, etc.
according to customer requirements.
The output part is linear.
Our team has more than 10 years of stepper motor design,
development and production experience, so we can achieve product
development and auxiliary design according to the special needs of
customers!
Customer needs are our efforts, please feel free to contact us!
Mechanical Dimension:MM
Technical Features
This product is a patented product of the company. It converts the
rotation of the motor into a linear motion through the relative
movement of the internal rotor and the screw. It is mainly used in
valve control, automatic buttons, medical equipment, textile
machines, robots and other related fields.
At the same time, the external wiring part can use four terminal
posts (light pins) or connecting wires, or FPC FFC PCB, etc.
according to customer requirements.
The output part is linear.
Typical Applications
Specifications
Product Name | PM25 linear stepper motor |
Model | SM25-019L-External drive type |
Resistance | 13Ω±10% |
Pull in frequency | 600PPS |
The Mark Thrust | 60N |
Inductance | 4.5REF (mH) |
Mounting pitch | 27±0.2 mm |
Mounting aperture | φ3mm (Through hole) |
Axial height | 38 mm |
Insulation Class | class E |
lead wrie | UL 1061 AWG26 |
OEM & ODM Srvice | Available |
