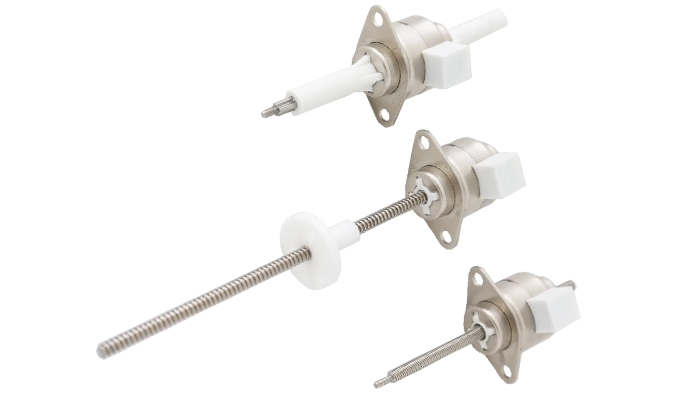

PM20 2 Phase 4 Wire Miniature Linear Stepper Motor 5V 12V
Non-Captive Type DC Linear Actuator Screw Motor

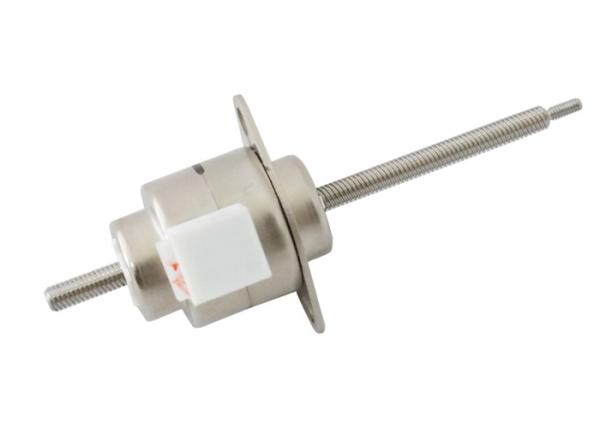

SM20-019L- Non-captive is a Stepper motor whit a lead screw, when rotor running CW or CCW,the
lead screw will go forword or backword. at the same time ,the lead
will rotating.
motor stepper step angle is 7.5 degree, lead pitch is 0.6096mm,
when motor stepper rotate one step, the lead move 0.0254mm
This product is a patented product of the company. It converts the
rotation of the motor into a linear motion through the relative
movement of the internal rotor and the screw. It is mainly used in
valve control, automatic buttons, medical equipment, textile
machines, robots and other related fields.
At the same time, the external wiring part can use four terminal
posts (light pins) or connecting wires, or FPC FFC PCB, etc.
according to customer requirements.
The output part is linear.
Our team has more than 10 years of stepper motor design,
development and production experience, so we can achieve product
development and auxiliary design according to the special needs of
customers!
Customer needs are our efforts, please feel free to contact us!
Mechanical Dimension:MM

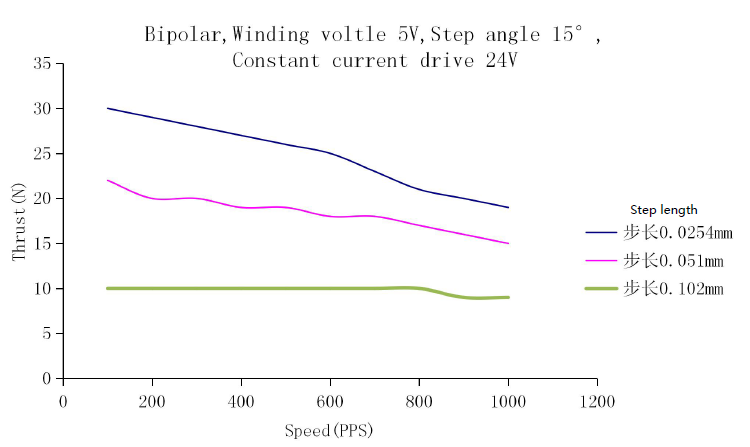

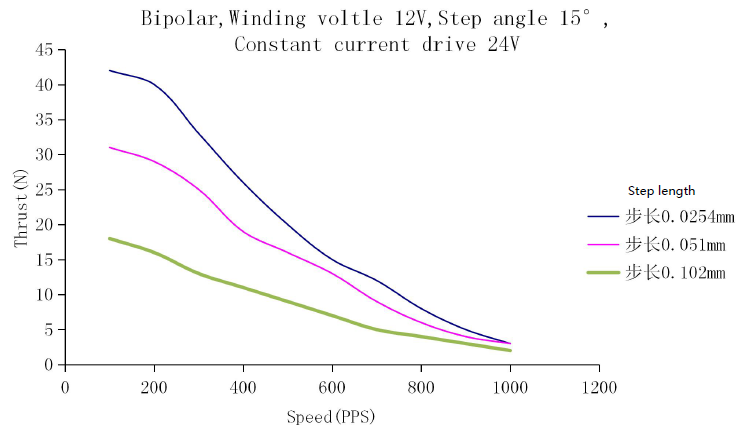

STEP SPEED AND THRUST CURVE
Technical Features
This product is a patented product of the company. It converts the
rotation of the motor into a linear motion through the relative
movement of the internal rotor and the screw. It is mainly used in
valve control, automatic buttons, medical equipment, textile
machines, robots and other related fields.
At the same time, the external wiring part can use four terminal
posts (light pins) or connecting wires, or FPC FFC PCB, etc.
according to customer requirements.
The output part is linear.
Typical Applications
Specifications
Product Name | PM20 linear stepper motor |
Model | SM20-019L-Non-captive |
Resistance | 13Ω±10% |
Pull in frequency | 600PPS |
The Mark Thrust | 20N |
Inductance | 4.5REF (mH) |
Mounting pitch | 27±0.2 mm |
Mounting aperture | φ3mm (Through hole) |
Axial height | 31 mm |
Insulation Class | class E |
lead wrie | UL 1061 AWG26 |
OEM & ODM Srvice | Available |
Customization service
The motor can customize the normal screw stroke,
Connectors and outlet boxes can be customized according to customer
requirements
The screw rod can also customize the nut
Competitive Advantage
High quality and the best price.
Fast deliver,storage company and rich inventory
Near Shanghai port, the traffic is very convenient.
Product Detail Presentation
