8mm micro stepper motor long life 2 phase 4 wire stepper motor
VSM08133 is a precision long life micro stepper motor body outer
diameter 8MM, body length 8.2MM, shaft outer diameter 1MM, the
shaft length can be changed according to the needs, and can be
equipped with gears, pulleys,
Corresponding output devices such as worm and screw.
The motor has a basic step angle of 18 degrees and the motor runs
20 steps per week.
Because of its small size, high precision, and easy control, this
miniature stepper motor is widely used in cameras, optical
instruments, lenses, flashlights, precision medical equipment,
automatic door locks and other fields.
The motor input part of the FPC, but can according to the customer
demand can be changed to a connecting line needle, PCB and other
forms.The mounting bracket can be changed according to the
customer's request.At the same time, we can match the corresponding
drive system to meet the needs of customers!
Our team has more than 10 years of stepper motor design,
development and production experience, so we can achieve product
development and auxiliary design according to the special needs of
customers!
Customer needs are our efforts, please feel free to contact us!

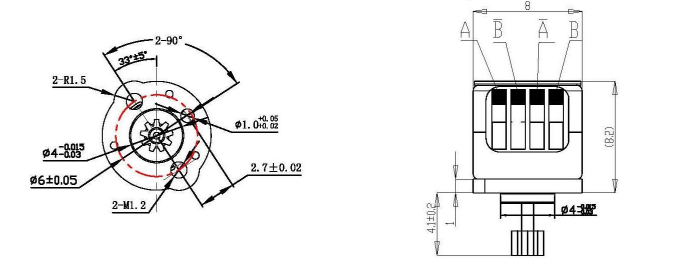

Mechanical Dimension:MM
Typical Applications
Specifications
| Product Name | 8mm micro stepper motor |
| Model | VSM08133 |
| Rated Voltage | 3.3V |
| Current Per Phase | 100 mA /phase |
| Coil Resistance | 40 Ω±7% |
| No. Of phase | 2 Phases |
| Step Angle | 18 degree |
| Excitation Method | 2 Phase Excitation |
| Drive Mode | Bipolar Drive |
| Pull-In Torque | 0.8 gf.cm ,(AT 3.3V DC) |
| Pull-Out Torque | 1.0 gf.cm ,(AT 3.3V DC) |
| Max. Response Frequency | 1000 pps,(AT 900 PPS , 3.3V DC) |
| Max. Starting Frequency | 1200 pps,(AT 900 PPS , 3.3V DC) |
| Insulation Class | Class E for Coils |
| Insulation Strength | 300 V AC for One Second |
| Insulation Resistance | 1.0 MΩ (DC 100 V) |
| Operating Temperature Range | -30~+70 ℃ |
| Weight | 10 g(Ref.) |
| OEM & ODM SERVICE | AVAILABLE |
