Mechanical Micro Stepper Motor Bipolar Drive Mode Long Using Life
VSM08133
8mm micro stepper motor Long life 2 phase 4 wire stepper stepping
motor
VSM08133 is a precision micro stepping motor body outer diameter
8MM, body length 8.2MM, shaft outer diameter 1MM, the shaft length
can be changed according to the needs, and can be equipped with
gears, pulleys,
Corresponding output devices such as worm and screw.
The motor has a basic step angle of 18 degrees and the motor runs
20 steps per week.
Because of its small size, high precision, and easy control, this
miniature stepper motor is widely used in cameras, optical
instruments, lenses, flashlights, precision medical equipment,
automatic door locks and other fields.

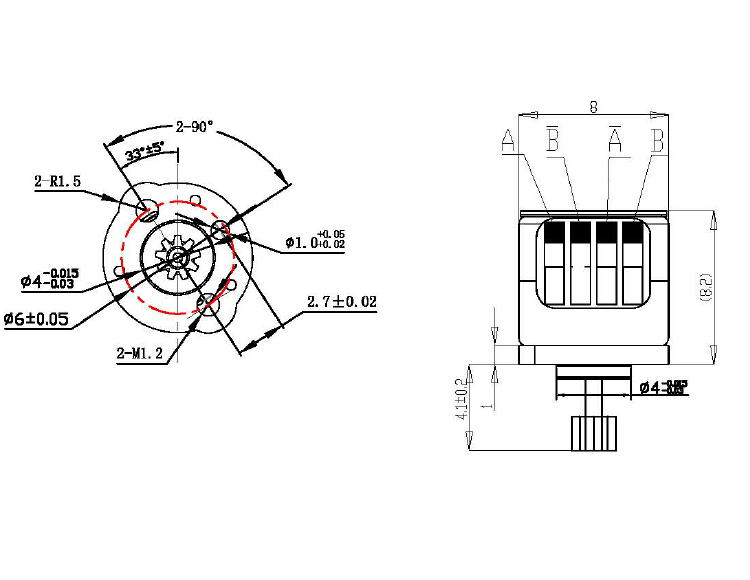

Mechanical Dimension:MM
The motor input part of the FPC, but can according to the customer
demand can be changed to a connecting line needle, PCB and other
forms.
The mounting bracket can be changed according to the customer's
request.
At the same time, we can match the corresponding drive system to
meet the needs of customers!
Our team has more than 10 years of stepper motor design,
development and production experience, so we can achieve product
development and auxiliary design according to the special needs of
customers!
Customer needs are our efforts, please feel free to contact us!
Typical Applications
Specifications
| Product Name | 8mm micro stepper motor |
| Model | VSM08133 |
| Rated Voltage | 3.3V |
| Coil Resistance | 40Ω±7% |
| No. Of phase | 2 Phases |
| Step Angle | 18 degree |
| Excitation Method | 2 Phase Excitation |
| Drive Mode | Bipolar Drive |
| MAX. STARTING FREQUENCY | 1000 PPS min. (AT 3.3V DC) |
| MAX. SLEWING FREQUENCY | 1200 PPS min. (AT 3.3 V DC) |
| PULL IN TORQUE | 0.8 gf-cm min. (AT 900 PPS , 3.3V DC) |
| PULL OUT TORQUE | 1.0gf-cm min. (AT 900 PPS , 3.3V DC) |
| INSULATION CLASS | CLASS E FOR COILS |
| INSULATION STRENGTH | 3.0mA (max.)100V AC FOR ONE SECOND |
| INSULATION RESISTENCE | 1.0 MΩ (DC 100 V) |
| OPERATING TEMPERATURE RANGE | -30 ~+70 ℃ |
| |
| OEM & ODM SERVICE | AVAILABLE |
Competitive Advantage
- High quality and the best price.
- Fast deliver,storage company and rich inventory
- Near Shanghai port, the traffic is very convenient.
