6mm Long life micro stepper motor 2 phase 4 wire pm stepper motor
for camera lenses

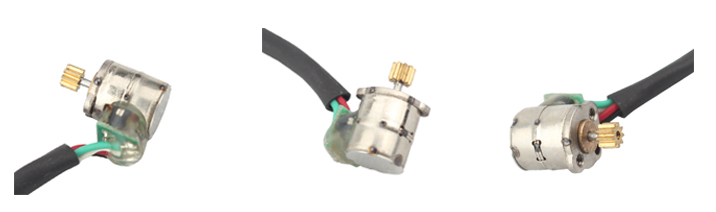

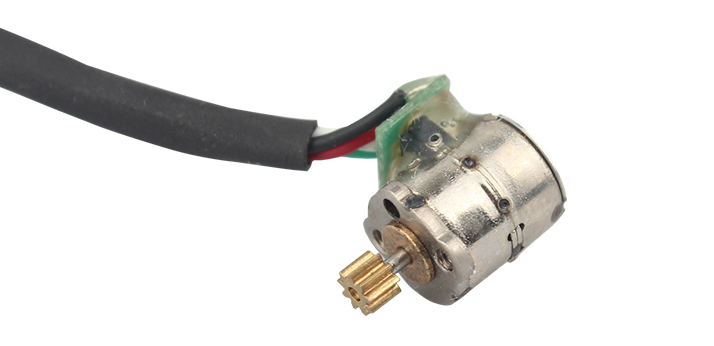

This product is a precision micro stepping motor body outer
diameter 6MM, body length 7MM, shaft outer diameter 1MM, the shaft
length can be appropriately changed according to the needs, and can
be equipped with gears, pulleys, worms, screw rods, etc. Output
device.
The motor has a basic step angle of 18 degrees and the motor runs
20 steps per week.
Because of its small size, high precision and easy control, this
micro stepping motor is widely used in cameras, optical
instruments, lenses, flashlights, precision medical equipment,
automatic door locks and other fields.
Mechanical Dimension:MM
Technical Features
The motor input part is shown as four needles, but it can be used
in various forms such as PCB, FPC, and connecting line according to
customer requirements.
The size and shape of the mounting plate can be changed according
to customer requirements.
At the same time, we can match the corresponding drive system to
meet the needs of customers!
Our team has more than 10 years of stepper motor design,
development and production experience, so we can achieve product
development and auxiliary design according to the special needs of
customers! Customer needs is our efforts, please feel free to
contact!
Typical Applications
Specifications
| Product Name | 6mm micro stepper motor |
| Model | VSM0613 |
| Rated Voltage | 3.3V |
| Current Per Phase | 200mA /phase |
| Coil Resistance | 18Ω±7% |
| No. Of phase | 2 Phases |
| Step Angle | 18 degree |
| Excitation Method | 2 Phase Excitation |
| Drive Mode | Bipolar Drive |
| Pull-In Torque | More Than 0.8gf.cm At 800 pps |
| Pull-Out Torque | More Than 1.0gf.cm At 800 pps |
| Noise | 45dB(Max.) |
| Max. Response Frequency | More Than 1300 pps,No Load |
| Max. Starting Frequency | More Than 2500 pps,No Load |
| Insulation Class | Class E for Coils |
| Insulation Strength | 100V AC for One Second |
| Insulation Resistance | 1MΩ (Min) |
| Operating Temperature Range | -10~+60℃ |
| Weight | 1.58g(Ref.) |
| OEM & ODM SERVICE | AVAILABLE |
Competitive Advantage
- High quality and the best price.
- Fast deliver,storage company and rich inventory
- Near Shanghai port, the traffic is very convenient.
Torque Curve For Reference
Product Detail Presentation
Type Of Wire Connect For Reference
Motor input method with Pin type, FPC, PCB, Lead wire etc.
These can be customized according to customer needs.
Type of Fixture Cover
The regular models are shown in the figure, and the special sizes
can be customized.
