5v micro geared stepper motor for Stepping motor medical
instruments and precision instruments
VSM10-817G is a 1024GB series speed reduction motor that uses a
10MM diameter stepper motor and a 10 * 24mm speed reducer for
special connection. The step angle of the motor is 18 °, and the
2-phase 4-wire output mode is usually a connecting wire. FPC, bare
needle, etc. can also be customized according to customer
installation
The conventional gear reduction ratio of the motor is 1:10, 1:30,
1:50, 1:100,~1:1000, and suitable gear reduction boxes can be
matched according to the rotational speed and torque of the motor
as required by customers
Suitable for precision instruments such as laser instruments,
medical equipment, fiber splicing machines, etc.

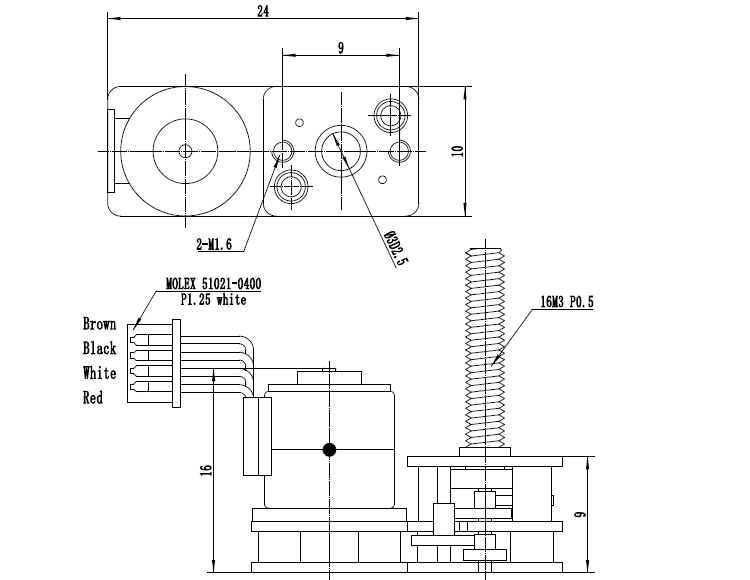

Mechanical Dimension:MM
Typical Applications
Specifications
| Product Name | 10mm micro stepper motor |
| Model | VSMVSM10-817G |
| Rated Voltage | 5 V |
| Current Per Phase | 130mA /phase |
| Coil Resistance | 39Ω±10% |
| No. Of phase | 2 Phases |
| Step Angle | 18 degree |
| Excitation Method | 2 Phase Excitation |
| Drive Mode | Bipolar Drive |
| MAX. STARTING FREQUENCY | 900 PPS min. (AT 5.0 V DC) |
| MAX. SLEWING FREQUENCY | 1200 PPS min. (AT 5.0 V DC) |
| PULL IN TORQUE | 3.5 gf-cm min. (AT 500 PPS , 5.0V DC) |
| PULL OUT TORQUE | 4.2 gf-cm min. (AT 500 PPS , 5.0V DC) |
| Insulation Class | Class E for Coils |
| Insulation Strength | 100V AC FOR ONE SECOND |
| Insulation Resistance | 50MΩ DC 500 V |
| Operating Temperature Range | -0~+55 ℃ |
| Weight | 13g |
| OEM & ODM SERVICE | AVAILABLE |
Competitive Advantage
- High quality and the best price.
- Fast deliver,storage company and rich inventory
- Near Shanghai port, the traffic is very convenient.
Product Detail Presentation
Type Of Wire Connect For Reference
Motor input method with Pin type, FPC, PCB, Lead wire etc.
These can be customized according to customer needs.
