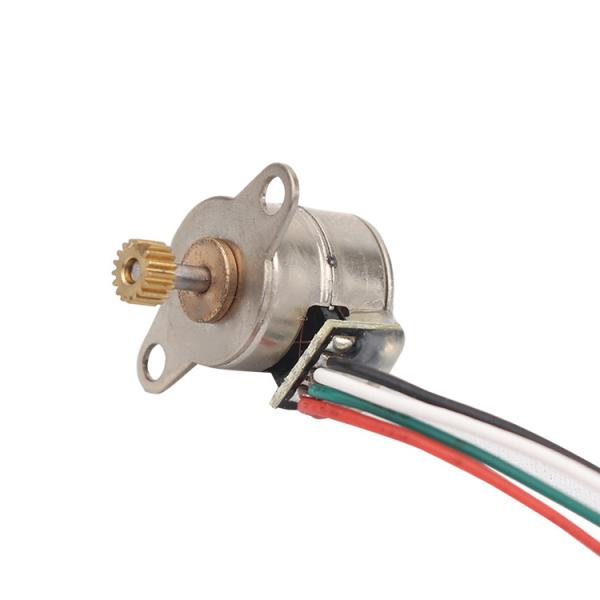

High Quality 10mm stepper motor Long life 2 phase 4 wire pm stepper
motor
Motor basic step angle is 18 degrees, that is, 20 steps per turn,
plus the deceleration box deceleration effect, the final motor
rotation angle resolution can reach 0.05~6 degrees, can be used in
many requirements
Mechanical Dimension:MM
Technical Features
Typical Applications
Specifications
| Product Name | 10mm micro stepper motor |
| Model | VSM1070 |
| Rated Voltage | 3.3V |
| Current Per Phase | 100 mA /phase |
| Coil Resistance | 40 Ω±7% |
| No. Of phase | 2 Phases |
| Step Angle | 18 degree |
| Excitation Method | 2 Phase Excitation |
| Drive Mode | Bipolar Drive |
| Pull-In Torque | 5.4 gf.cm ,(AT 5.0 V DC) |
| Pull-Out Torque | 6.0 gf.cm ,(AT 5.0 V DC) |
| Max. Response Frequency | 1250 pps,(AT 900 PPS , 5.0 V DC) |
| Max. Starting Frequency | 1950 pps,(AT 900 PPS , 5.0 V DC) |
| Insulation Class | Class E for Coils |
| Insulation Strength | 100 V AC for One Second |
| Insulation Resistance | 1.0 MΩ (DC 100 V) |
| Operating Temperature Range | -10~+60 ℃ |
| Weight | 4 g(Ref.) |
| OEM & ODM SERVICE | AVAILABLE |
Competitive Advantage
- High quality and the best price.
- Fast deliver,storage company and rich inventory
- Near Shanghai port, the traffic is very convenient.
Torque Curve For Reference
Type Of Wire Connect For Reference
Motor input method with Pin type, FPC, PCB, Lead wire etc.
These can be customized according to customer needs.
Type of Fixture Cover
The regular models are shown in the figure, and the special sizes
can be customized.
Product Detail Presentation
