micro stepper motor 6mm pm mini stepper motor for projector

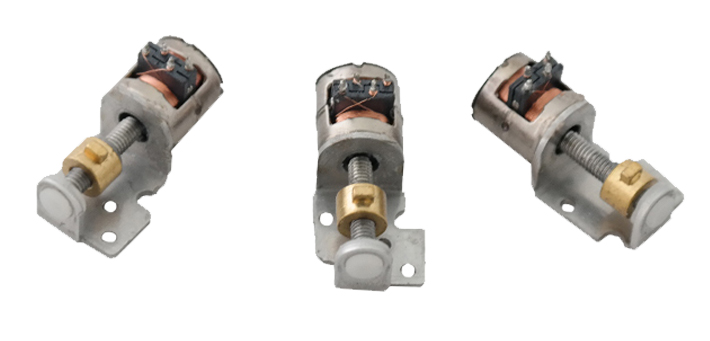

VSM0632 is a precision micro stepper motor with a body diameter of
6mm and a body length of 6mm. The motor comes with a bracket and a
metal slider,
Because of its small size, high precision, easy control and other
excellent characteristics, the micro stepping motor is widely used
in cameras, optical instrument, lenses, precision medical
equipment, automatic door locks and other fields.
The motor input part of FPC can be changed to wiring pins, PCBs,
and connecting wires according to customer needs.
The installation bracket can be customized according to customer
requirements.
- High quality and the best price.
- Fast deliver,storage company and rich inventory
- Near Shanghai port, the traffic is very convenient.
Mechanical Dimension:MM
Technical Features
Typical Applications
Specifications
| Product Name | 6mm micro stepper motor |
| Model | VSM0632 |
| Rated Voltage | 4.6V |
| Current Per Phase | 100 mA /phase |
| Coil Resistance | 40Ω±7% |
| No. Of phase | 1-2 Phases |
| Step Angle | 9 degree |
| Excitation Method | 1-2 Phase Excitation |
| Drive Mode | Bipolar Drive |
| Pull-Out Torque | 36 g min,At 500 pps |
| Max. Response Frequency | 1100 pps,At 4.6VDC |
| Max. Starting Frequency | 2000 pps,At 4.6VDC |
| Insulation Class | Class E for Coils |
| Insulation Strength | 300 V AC for One Second |
| Insulation Resistance | 1.0 MΩ (DC 100 V) |
| Operating Temperature Range | -10~+60℃ |
| Weight | 3.5 g(Ref.) |
| OEM & ODM SERVICE | AVAILABLE |
Competitive Advantage
- High quality and the best price.
- Fast deliver,storage company and rich inventory
- Near Shanghai port, the traffic is very convenient.
Torque Curve For Reference
Type Of Wire Connect For Reference
Motor input method with Pin type, FPC, PCB, Lead wire etc.
These can be customized according to customer needs.
Product Detail Presentation
Customization service:
Motor’s design can be adjusted based on customer’s requirement
including:
Motor’s diameter: we have 6mm, 8mm, 10mm, 15mm and 20 mm diameter
motor
Coil resistance/ rated voltage: coil resistance is adjustable, and
with higher resistance, motor’s rated voltage is higher.
Bracket design/ lead screw length: if customer want the bracket to
be longer/short, with special design such as mounting holes, it’s
adjustable.
PCB + cables + connector: PCB’s design, cable length and connector
pitch are all adjustable, they can be replaced into FPC if
customers require.
Lead time and packaging information:
Lead time for samples:
Standard motors in stock: within 3 days
Standard motors not in stock: within 15 days
Customized products: About 25~30 days (based on complexity of
customization)
