Waterproof ROV Thruster Motors / Submersible Brushless Motor Small Type SW3540

Ask Lasest Price
Brand Name :	VIC-TECH
Model Number :	SW3540
Price :	$19.13-$32.8
Payment Terms :	T/T, Western Union, MoneyGram
Supply Ability :	100000 Units/year
Delivery Time :	15-30 work days

Add to Cart

Product Details
Company Profile

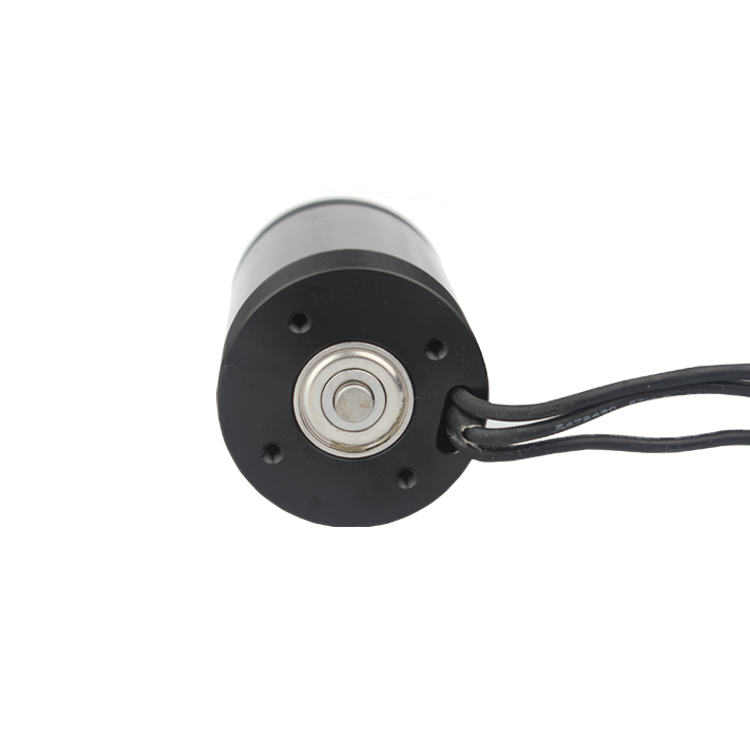

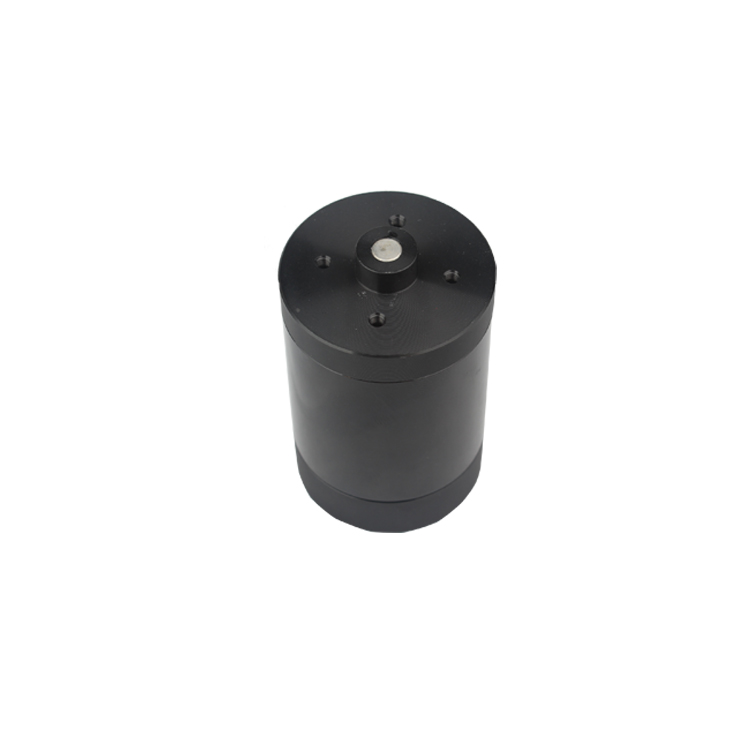

Waterproof ROV Thruster Motors / Submersible Brushless Motor Small Type SW3540

SW3540 ROV thruster diving underwater equipment model submarine underwater brushless motor

Product Name: SW3540 underwater underwater propeller diving equipment motor

Product brand: SUMAX

Product advantages: stable performance, long-lasting cruise, light and sensitive, and widely used

Product use: Wide range of applications in precision electronic equipment, automation equipment, water and underwater equipment, aircraft model drones and intelligent robots

Mechanical Dimension:MM

Technical Features

Typical Applications

Precision Electronic Instrument
Automation Equipment
Underwater Equipment
Aircraft Model Drone
Smart Robot

Specifications

Model:	SW3540
Weight:	315g
Unloaded current:	0.3A/11.1V
Rated voltage:	24V
Rated current:	15.6A
Rated power:	420W
Electrical resistance(Three Phase):	0.55Ω±5%
Motor inductance:	60.5uH
Nominal torque:	0.25N.M
Rated voltage:	24V
Dielectric strength:	AC300V/60s ≤5mA, No breakdown on the motor
Pressure resistance:	1.5Mpa,No leakage in motor and wire

Torque Curve For Reference

SUMAX3540 Performance Curve 24V

Instructions for use

Product Detail Presentation
