SW2210B ROV thruster diving underwater equipment model submarine
underwater
brushless motor
Product Name: SW2210B underwater underwater propeller diving
equipment motor
Product brand: SUMAX
Product advantages: stable performance, long-lasting cruise, light
and sensitive, and widely used
Product use: Wide range of applications in precision electronic
equipment, automation equipment, water and underwater equipment,
aircraft model drones and intelligent robots
Mechanical Dimension:MM
Technical Features
SW2210B water underwater motor, beautiful appearance, small size,
long life, low noise technology, high energy saving rate, large
torque and high precision. Wide range of applications in precision
electronic equipment, automation equipment, water and underwater
equipment, aircraft model drones and intelligent robots. We are a
manufacturer specializing in R&D, production and sales of
underwater motors. We have a wealth of production experience, a
wide range of products, and a wide range of specifications. At the
same time, we are the source factory direct sales, reliable
quality, large inventory, and reasonable price.
Typical Applications
- Precision Electronic Instrument
- Automation Equipment
- Underwater Equipment
- Aircraft Model Drone
- Smart Robot
Specifications
| Model: | SW2210B with short shaft |
| Weight: | Short shaft 75g |
| Unloaded current: | 0.25A/11.1V |
| Rated voltage: | 11.1V |
| Rated current: | 6A |
| Rated power: | 100W |
| Electrical resistance(Three Phase): | 0.55Ω±5% |
| Motor inductance: | 60.5uH |
| Nominal torque: | 0.25N.M |
| Rated voltage: | 11.1V |
| Dielectric strength: | AC300V/60s ≤5mA, No breakdown on the motor |
| Pressure resistance: | 1.5Mpa,No leakage in motor and wire |
Torque Curve For Reference

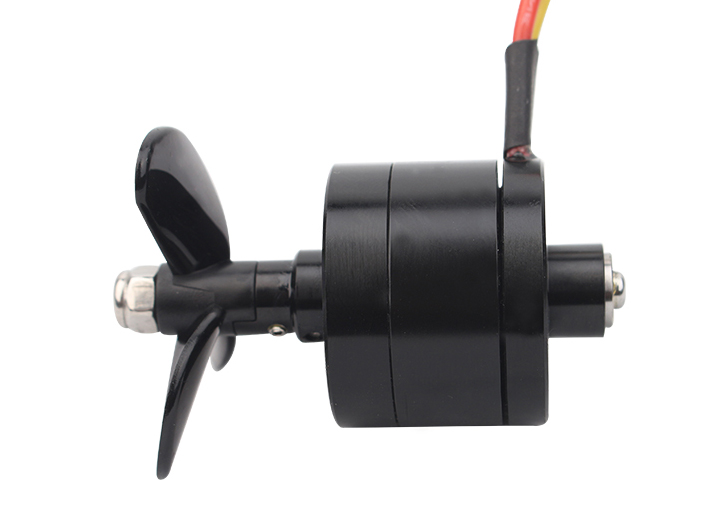

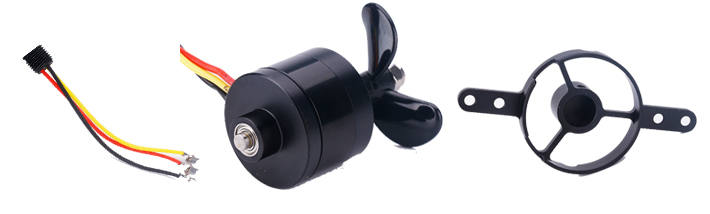

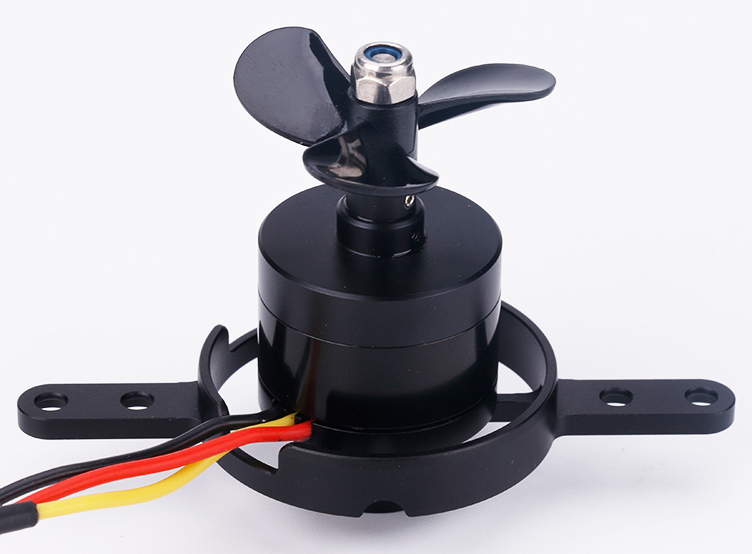

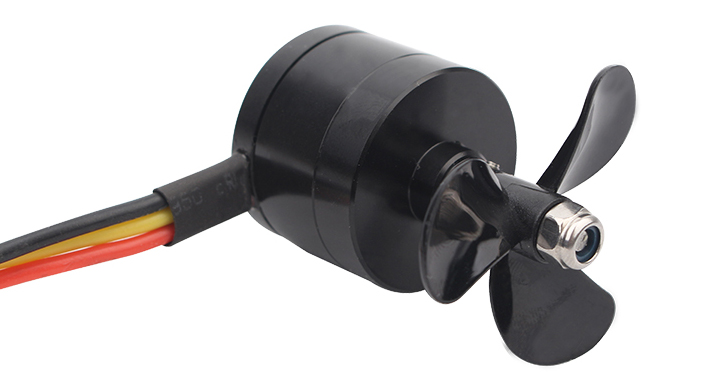

Product Detail Presentation
