factory direct quality lead screw and nut stainless steel
trapezoidal screw trapezoidal screw nut
Product Name: Trapezoidal screw
Process: threaded raceway adopts machining, machining precision is
carried out according to national standard JB/T 2886-2008,
machining diameter range is φ2~14, machining lead range is 1~14,
custom machining left rotation, right rotation, left and right
direction integration .
Material: The conventional material of the lead screw is YF45Mnr
non-tempered free-cutting alloy steel. The heat treatment hardness
can reach HRC58~62, and optional 45#·304 stainless steel, etc. The
nut material can be tin bronze, aluminum bronze, brass, cast iron,
stainless steel. Etc., our company also accepts processing
customization, please feel free to contact us if you need.
Mechanical Dimension:MM
Technical Features
Srew Datasheet
| No. | Spec model | Outer dia | Lead | Thread No. | Tooth distance | Outer dia |
| 1 | Tr3.5*1-N1-RH | 3.5 | 1 | 1 | 1 | 3.5 | 3.475 |
| 2 | Tr3.5*0.6096-N1-RH | 3.5 | 0.6096 | 1 | 0.6096 | 3.5 | 3.475 |
| 3 | Tr3.5*2.4384-N2-RH | 3.5 | 2.4384 | 2 | 1.2192 | 3.5 | 3.475 |
| 4 | Tr4-RH | 4 | | | | 4 | 3.975 |
| 5 | Tr5*1-N1-RH | 5 | 1 | 1 | 1 | 5 | 4.975 |
| 6 | Tr5*2-N2-RH | 5 | 2 | 2 | 1 | 5 | 4.975 |
| 7 | Tr5*4-N4-RH | 5 | 4 | 4 | 1 | 5 | 4.975 |
| 8 | Tr5*6-N6-RH | 5 | 6 | 6 | 1 | 5 | 4.975 |
| 9 | Tr6*1-N1-RH | 6 | 1 | 1 | 1 | 6 | 5.975 |
| 10 | Tr6*2-N2-RH | 6 | 2 | 2 | 1 | 6 | 5.975 |
| 11 | Tr6*4-N4-RH | 6 | 4 | 4 | 1 | 6 | 5.975 |
| 12 | Tr6*6-N6-RH | 6 | 6 | 6 | 1 | 6 | 5.975 |
| 13 | Tr6*12-N6-RH | 6 | 12 | 6 | 2 | 6 | 5.975 |
| 14 | Tr6*12-N12-RH | 6 | 12 | 12 | 1 | 6 | 5.975 |
| 15 | Tr8*1-N1-RH | 8 | 1 | 1 | 1 | 8 | 7.975 |
| 16 | Tr8*3-N2-RH | 8 | 3 | 2 | 1.5 | 8 | 7.975 |
| 17 | Tr8*2-N1-RH | 8 | 2 | 1 | 2 | 8 | 7.975 |
| 18 | Tr8*4-N2-RH | 8 | 4 | 2 | 2 | 8 | 7.975 |
| 19 | Tr8*8-N4-RH | 8 | 8 | 4 | 2 | 8 | 7.975 |
| 20 | Tr8*10-N5-RH | 8 | 10 | 5 | 2 | 8 | 7.975 |
| 21 | Tr8*12-N6-RH | 8 | 12 | 6 | 2 | 8 | 7.975 |
| 22 | Tr8*14-N7-RH | 8 | 14 | 7 | 2 | 8 | 7.975 |
| 23 | Tr8*16-N -RH | 8 | | | 2 | 8 | 7.975 |
| 24 | Tr8*20-N -RH | 8 | | | 2 | 8 | 7.975 |
| 25 | Tr9*24-N24-RH | 9 | 24 | 24 | 1 | 9 | 8.975 |
| 26 | Tr10*1-N1-RH | 10 | 1 | 1 | 1 | 10 | 9.975 |
| 27 | Tr10*1-N2-RH | 10 | | | 1 | 10 | 9.975 |
| 28 | Tr10*2-N1-RH | 10 | 2 | 1 | 2 | 10 | 9.975 |
| 29 | Tr10*3-N2-RH | 10 | 3 | 2 | 1.5 | 10 | 9.975 |
| 30 | Tr10*4-N2-RH | 10 | 4 | 2 | 2 | 10 | 9.975 |
| 31 | Tr10*8-N4-RH | 10 | 8 | 4 | 2 | 10 | 9.975 |
| 32 | Tr10*10-N5-RH | 10 | 10 | 5 | 2 | 10 | 9.975 |
| 33 | Tr10*12-N6-RH | 10 | 12 | 6 | 2 | 10 | 9.975 |
| 34 | Tr10*14-N -RH | 10 | | | 2 | 10 | 9.975 |
| 35 | Tr10*20-N -RH | 10 | | | 2 | 10 | 9.975 |
| 36 | Tr12*2-N1-RH | 12 | 2 | 1 | 2 | 12 | 11.975 |
| 37 | Tr12*3-N1-RH | 12 | 3 | 1 | 3 | 12 | 11.975 |
| 38 | Tr12*8-N4-RH | 12 | 8 | 4 | 2 | 12 | 11.975 |
| 39 | Tr12*4-N -RH | 12 | | | 2 | 12 | 11.975 |
| 40 | Tr12*12-N -RH | 12 | | | 2 | 12 | 11.975 |
| 41 | Tr12*10-N4-RH | 12 | 10 | 4 | 2.5 | 12 | 11.975 |
| 42 | Tr12.7*12.7-N5-RH | 12 | 12.7 | 5 | 2.54 | 12 | 11.975 |
| 43 | Tr14*3-N -RH | 14 | | | 3 | 14 | 13.975 |
| 44 | Tr14*4-N -RH | 14 | | | 4 | 14 | 13.975 |
Lead Time and Packaging Information
Lead time for samples:
Standard motors in stock: within 3 days
Standard motors not in stock: within 15 days
Customized products: About 25~30 days (based on complexity of
customization)
Lead time for building a new mold: generally about 45 days
Lead time for mass production: based on order quantity
Packaging:
Samples are packed in foam sponge with a paper box, shipped by
express
Mass production, motors are packed in corrugated cartons with
transparent film outside. (shipping by air)
If shipped by sea, product will be packed on pallets

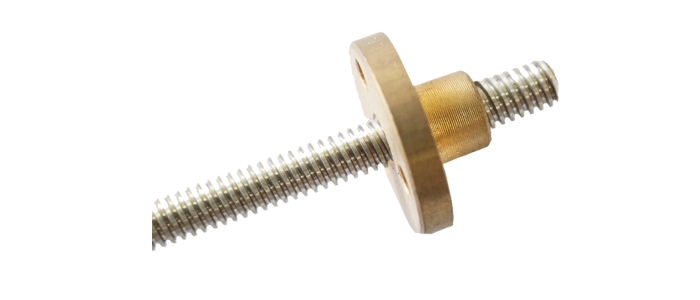

Product Detail Presentation
