Threaded T Head Lead Screw And Nut For 3d Printer Parts RoHS Approval

Ask Lasest Price
Brand Name :	VIC-TECH
Model Number :	T8
Certification :	RoHS
Price :	$6.00 - $12.00 / Units
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	100000Units per month
Delivery Time :	15-30 work days

Add to Cart

Product Details
Company Profile

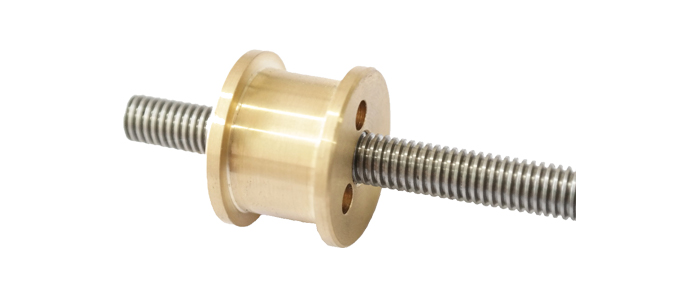

Threaded T Head Lead Screw And Nut For 3d Printer Parts RoHS Approval

threaded t nut T8 lead screw and nut stepper motor trapezoidal guide t head screw for 3d printer accessories

Product Name: Trapezoidal screw
Process: threaded raceway adopts machining, machining precision is carried out according to national standard JB/T 2886-2008, machining diameter range is φ2~14, machining lead range is 1~14, custom machining left rotation, right rotation, left and right direction integration .
Material: The conventional material of the lead screw is YF45Mnr non-tempered free-cutting alloy steel. The heat treatment hardness can reach HRC58~62, and optional 45#·304 stainless steel, etc. The nut material can be tin bronze, aluminum bronze, brass, cast iron, stainless steel. Etc., our company also accepts processing customization, please feel free to contact us if you need.

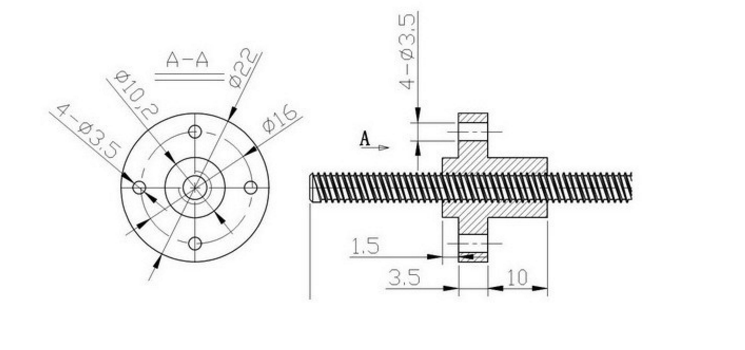

Mechanical Dimension:MM

Technical Features

Srew Datasheet

No.	Spec model	Outer dia	Lead	Thread No.	Tooth distance	Outer dia
1	Tr3.5*1-N1-RH	3.5	1	1	1	3.5	3.475
2	Tr3.5*0.6096-N1-RH	3.5	0.6096	1	0.6096	3.5	3.475
3	Tr3.5*2.4384-N2-RH	3.5	2.4384	2	1.2192	3.5	3.475
4	Tr4-RH	4				4	3.975
5	Tr5*1-N1-RH	5	1	1	1	5	4.975
6	Tr5*2-N2-RH	5	2	2	1	5	4.975
7	Tr5*4-N4-RH	5	4	4	1	5	4.975
8	Tr5*6-N6-RH	5	6	6	1	5	4.975
9	Tr6*1-N1-RH	6	1	1	1	6	5.975
10	Tr6*2-N2-RH	6	2	2	1	6	5.975
11	Tr6*4-N4-RH	6	4	4	1	6	5.975
12	Tr6*6-N6-RH	6	6	6	1	6	5.975
13	Tr6*12-N6-RH	6	12	6	2	6	5.975
14	Tr6*12-N12-RH	6	12	12	1	6	5.975
15	Tr8*1-N1-RH	8	1	1	1	8	7.975
16	Tr8*3-N2-RH	8	3	2	1.5	8	7.975
17	Tr8*2-N1-RH	8	2	1	2	8	7.975
18	Tr8*4-N2-RH	8	4	2	2	8	7.975
19	Tr8*8-N4-RH	8	8	4	2	8	7.975
20	Tr8*10-N5-RH	8	10	5	2	8	7.975
21	Tr8*12-N6-RH	8	12	6	2	8	7.975
22	Tr8*14-N7-RH	8	14	7	2	8	7.975
23	Tr8*16-N -RH	8			2	8	7.975
24	Tr8*20-N -RH	8			2	8	7.975
25	Tr9*24-N24-RH	9	24	24	1	9	8.975
26	Tr10*1-N1-RH	10	1	1	1	10	9.975
27	Tr10*1-N2-RH	10			1	10	9.975
28	Tr10*2-N1-RH	10	2	1	2	10	9.975
29	Tr10*3-N2-RH	10	3	2	1.5	10	9.975
30	Tr10*4-N2-RH	10	4	2	2	10	9.975
31	Tr10*8-N4-RH	10	8	4	2	10	9.975
32	Tr10*10-N5-RH	10	10	5	2	10	9.975
33	Tr10*12-N6-RH	10	12	6	2	10	9.975
34	Tr10*14-N -RH	10			2	10	9.975
35	Tr10*20-N -RH	10			2	10	9.975
36	Tr12*2-N1-RH	12	2	1	2	12	11.975
37	Tr12*3-N1-RH	12	3	1	3	12	11.975
38	Tr12*8-N4-RH	12	8	4	2	12	11.975
39	Tr12*4-N -RH	12			2	12	11.975
40	Tr12*12-N -RH	12			2	12	11.975
41	Tr12*10-N4-RH	12	10	4	2.5	12	11.975
42	Tr12.7*12.7-N5-RH	12	12.7	5	2.54	12	11.975
43	Tr14*3-N -RH	14			3	14	13.975
44	Tr14*4-N -RH	14			4	14	13.975

Product Detail Presentation
