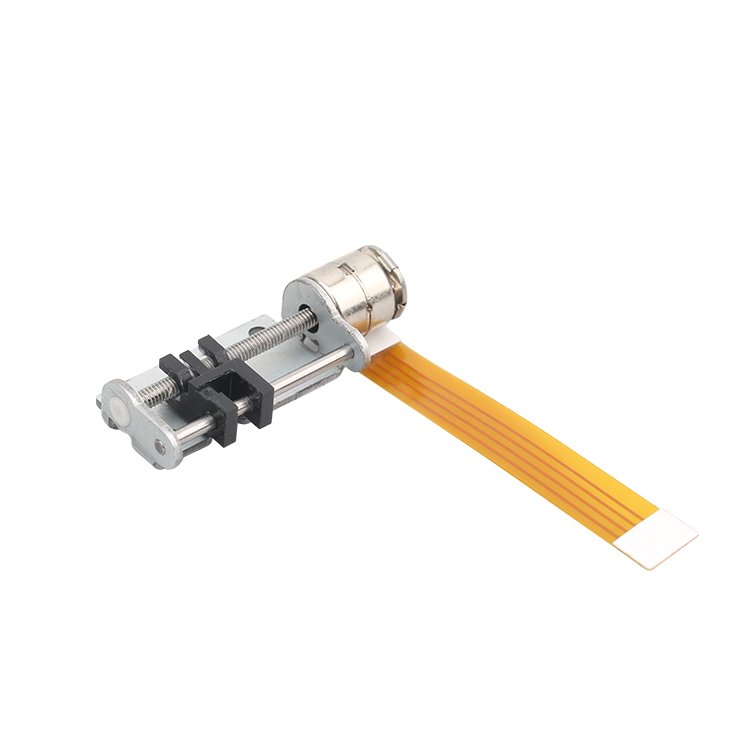

    3.3V 8mm Liner Slider Stepper Motor With Bracket Easy To Control linear stepping motor VSM0806

    8mm Micro slider Linear Stepping Motor Screw motor with Bracket Stepper Motor

    VSM0806 is a precision micro step motor, the output shaft with a pitch of 0.4mm of the screw, through the screw and the screw rod supporting the turn of the screw into a thrust.
    Motor basic step angle is 18 degrees, the motor running 20 steps every week, so the resolution of displacement can reach 0.02mm, to achieve the purpose of precision control.

    Mechanical Dimension:MM


    Technical Features



    Actuator aspects using subdivision drive way to meet.
    Because of its small size, high precision, easy to control and other excellent characteristics, so this micro stepper motor is widely used in the camera, optical instruments, lenses, precision medical devices, automatic door locks and other fields.
    The motor input part of the FPC, but can according to the customer demand can be changed to a connecting line needle, PCB and other forms.
    The mounting bracket can be changed according to the customer's request.


    Typical Applications

    • Intelligent Security Products
    • Camera Lenses

    • Door Locks

    • Wearable Device

    • Security Camera

    Specifications

    PRODUCT NAME8MM MICRO STEPPING MOTOR LENS
    MODELVSM0806
    RATED VOLTAGE3.3V
    COIL RESISTANCE20 Ω±10%
    PHASE2 PHASE
    MAX. STARTING FREQUENCY800 PPS min. (AT 3.3 V DC)
    MAX. SLEWING FREQUENCY2000 PPS min. (AT 3.3 V DC)
    PULL IN TORQUE1.5 gf-cm min.(AT 500 PPS , 3.3V DC)
    PULL OUT TORQUE2.0 gf-cm min.(AT 500 PPS , 3.3V DC)
    INSULATION CLASSCLASS E FOR COILS
    INSULATION STRENGTH100 V AC FOR ONE SECOND
    INSULATION RESISTENCE1.0 MΩ (DC 100 V)
    OPERATING TEMPERATURE RANGE-10 ~+60 ℃
    ENVIRONMENTAL CONDITIONS USEING SCREW GREASE-40 ~+90 ℃
    OEM & ODM SERVICE

    AVAILABLE



    Competitive Advantage

    • High quality and the best price.
    • Fast deliver,storage company and rich inventory
    • Near Shanghai port, the traffic is very convenient.

    Torque Curve For Reference

    Product Detail Presentation


    Type of Wire Connect

    Motor input method with Pin type, FPC, PCB, Lead wire etc.

    These can be customized according to customer needs.
