    10mm micro slider linear stepping motor screw motor with5v dc bracket stepper motor SM10198

    Ask Lasest Price
    Brand Name : VIC-TECH
    Model Number : VSM10198
    Certification : RoHS
    Price : $2.2-$7.5
    Payment Terms : Western Union, MoneyGram,Credit Card,VISA,, T/T
    Supply Ability : 10000 PCS 45days
    Delivery Time : 10 days after the sample is paid
    • Product Details
    • Company Profile

    10mm micro slider linear stepping motor screw motor with5v dc bracket stepper motor SM10198

    10mm mini slider screw stepper motor 5v linear stepper motor

    VSM10198 is a precision lead screw motor ,the output shaft with a pitch of 0.4mm of the screw, through the screw and the screw rod supporting the turn of the screw into a thrust.
    Motor basic step angle is 18 degrees, the motor running 20 steps every week, so the resolution of displacement can reach 0.02mm, to achieve the purpose of precision control.
    Actuator aspects using subdivision drive way to meet.

    Technical Features

    Because of its small size, high precision, easy to control and other excellent characteristics, so this micro stepper motor is widely used in the camera, optical instruments, lenses, precision medical devices, automatic door locks and other fields.
    The motor input part of the FPC, but can according to the customer demand can be changed to a connecting line needle, PCB and other forms.

    Main Application

    1) Camera

    2) Optical instruments

    3) Lenses

    4) Precision medical devices

    5) Automatic door locks

    Specifications

    PRODUCT NAME

    10mm lead screw motor

    MODEL

    VSM10198

    MAX. STARTING FREQUENCY

    1000 PPS min. (AT 3.3 V DC)

    MAX. SLEWING FREQUENCY

    1200 PPS min. (AT 3.3 V DC)

    PULL IN TORQUE

    3.5gf-cm min. (AT 500 PPS , 3.3V DC)

    PULL OUT TORQUE

    4.5gf-cm min. (AT 500 PPS , 3.3V DC)

    INSULATION CLASS

    CLASS E FOR COILS

    INSULATION STRENGTH

    300 V AC FOR ONE SECOND

    INSULATION RESISTENCE

    50 MΩ (DC 100 V)

    OPERATING TEMPERATURE RANGE

    -20 ~+70 ℃

    OEM & ODM SERVICE

    AVAILABLE


    Torque Curve For Reference

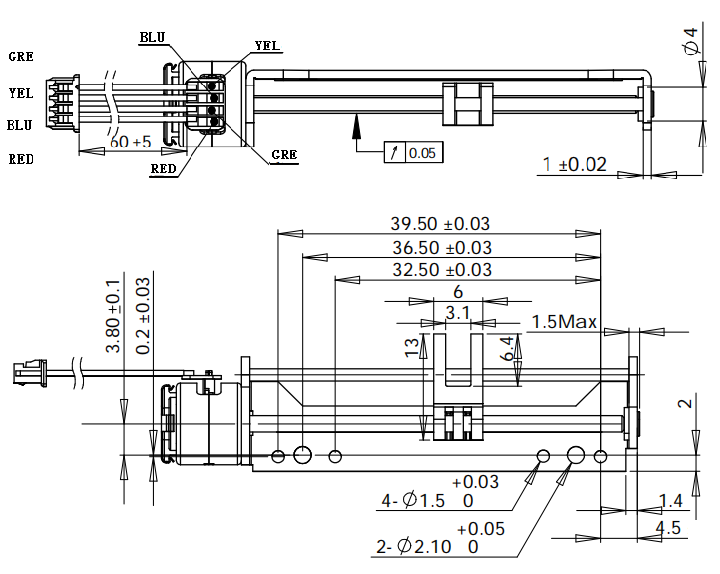

    Product Detail Presentation



    Type Of Wire Connect For Reference

    Motor input method with Pin type,FPC, PCB, Lead wire etc. These can be customized according to customer needs.
