    40mm Stroke Liner Slider small Stepper Motor With 18 Degrees Step Angle 2 phase stepper motor VSM08138

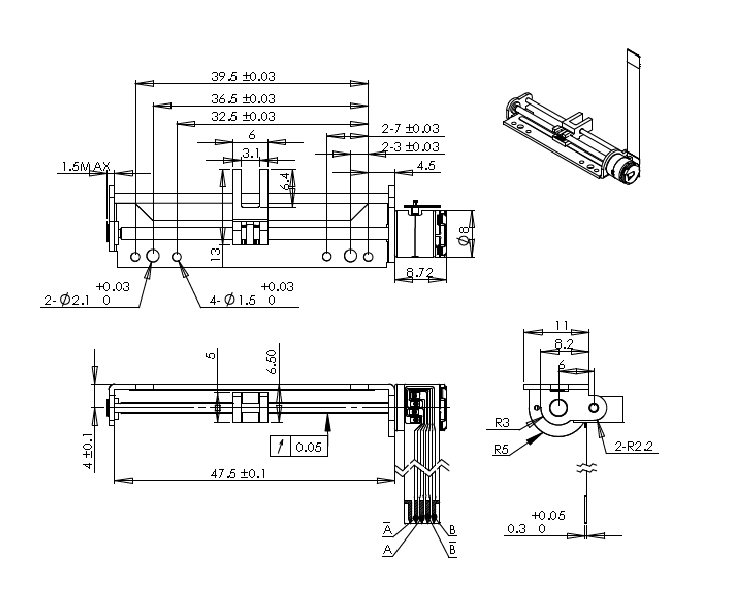

    8mm Micro Screw motor with Bracket Stepper Motor

    VSM08138 is a precision lead screw motor ,the output shaft with a pitch of 0.4mm of the screw, through the screw and the screw rod supporting the turn of the screw into a thrust.
    Motor basic step angle is 18 degrees, the motor running 20 steps every week, so the resolution of displacement can reach 0.02mm, to achieve the purpose of precision control.
    Actuator aspects using subdivision drive way to meet.


    Technical Features

    Because of its small size, high precision, easy to control and other excellent characteristics, so this micro stepper motor is widely used in the camera, optical instruments, lenses, precision medical devices, automatic door locks and other fields.
    The motor input part of the FPC, but can according to the customer demand can be changed to a connecting line needle, PCB and other forms.

    Main Application

    1) Camera

    2) Optical instruments

    3) Lenses

    4) Precision medical devices

    5) Automatic door locks

    Specifications

    PRODUCT NAME

    8mm lead screw motor

    MODEL

    VSM08138

    MAX. STARTING FREQUENCY

    800PPS min. (AT 3.3 V DC)

    MAX. SLEWING FREQUENCY

    1200 PPS min. (AT 3.3 V DC)

    PULL IN TORQUE

    1.5gf-cm min. (AT 500 PPS , 3.3V DC)

    PULL OUT TORQUE

    2.0gf-cm min. (AT 500 PPS , 3.3V DC)

    INSULATION CLASS

    CLASS E FOR COILS

    INSULATION STRENGTH

    100 V AC FOR ONE SECOND

    INSULATION RESISTENCE

    1 MΩ (DC 100 V)

    OPERATING TEMPERATURE RANGE

    -20 ~+70 ℃

    OEM & ODM SERVICE

    AVAILABLE


    Torque Curve For Reference

    Product Detail Presentation



    Type Of Wire Connect For Reference

    Motor input method with Pin type,FPC, PCB, Lead wire etc. These can be customized according to customer needs.
