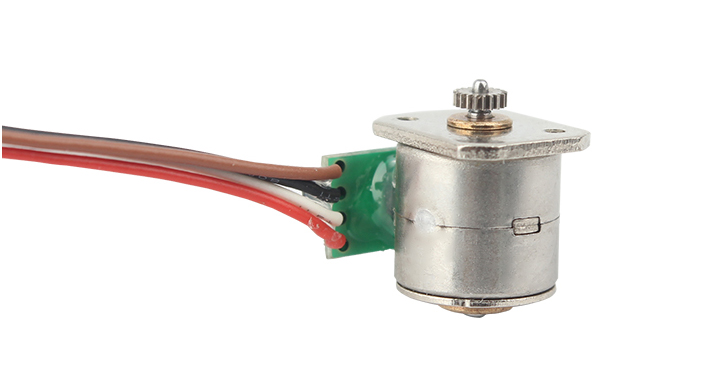

    10mm Micro Stepper Motor 5V 2 Phase PM Stepper Motor For Intelligent Security VSM1062

    Ask Lasest Price
    Brand Name : VIC-TECH
    Model Number : VSM1062
    Certification : RoHS
    Price : $2~$5/Unit
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 1000000 Units/year
    Delivery Time : 15-30 work days
    • Product Details
    • Company Profile

    10mm Micro Stepper Motor 5V 2 Phase PM Stepper Motor For Intelligent Security VSM1062

    VSM1062 micro stepper motor 5V 2 phase pm stepper motor for intelligent security

    Motor basic step angle is 18 degrees, that is, 20 steps per turn, plus the deceleration box deceleration effect, the final motor rotation angle resolution can reach 0.05~6 degrees, can be used in many requirements


    Mechanical Dimension:MM

    Typical Applications

    • Intelligent Security Products

    • Camera Lenses

    • Door Locks

    • Wearable device


    Specifications

    Product Name10mm micro stepper motor
    ModelVSM1062
    Current Per Phase250mA /phase
    Coil Resistance20Ω±7%
    No. Of phase2 Phases
    Step Angle18 degree
    Excitation Method2 Phase Excitation
    Drive ModeBipolar Drive
    Pull-In TorqueMore Than 5.0gf.cm At 500 pps
    Pull-In OutMore Than 6.0gf.cm At 500 pps
    Hoiding TorqueMore Than 13.0gf.cm At 500 pps
    Max. Response FrequencyMore Than 1500 pps
    Max. Starting FrequencyMore Than 1000 pps
    Insulation ClassClass E for Coils
    Insulation Strength100V AC for One Second
    Insulation Resistance50MΩ DC 500 V
    Operating Temperature Range-0~+55 ℃

    Lead Wire

    UL1571 28#
    Weight5.5g
    OEM & ODM SERVICEAVAILABLE

    Competitive Advantage

    • High quality and the best price.
    • Fast deliver,storage company and rich inventory
    • Near Shanghai port, the traffic is very convenient.

    Product Detail Presentation


    Type Of Wire Connect For Reference

    Motor input method with Pin type, FPC, PCB, Lead wire etc.

    These can be customized according to customer needs.


    Type of Fixture Cover

    The regular models are shown in the figure, and the special sizes can be customized.
