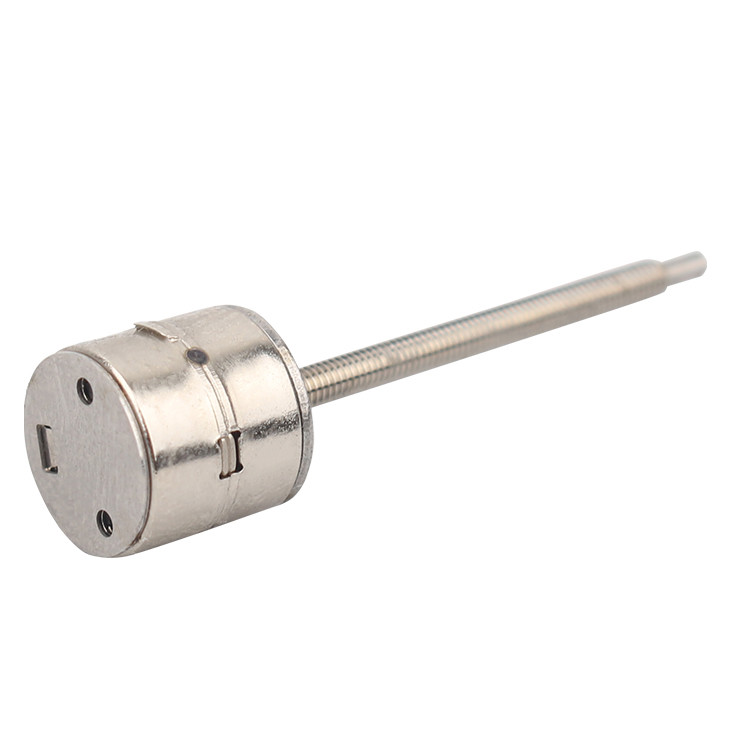

VSM0810 8mm micro stepper motor 2 phase pm stepper motor for Camera
Lenses and Door Locks
VSM0810 is a precision micro stepping motor body outer diameter
8MM, body length 8.2MM, shaft outer diameter 1MM, the shaft length
can be changed according to the needs, and can be equipped with
gears, pulleys,
Corresponding output devices such as worm and screw.
The motor has a basic step angle of 18 degrees and the motor runs
20 steps per week.
Because of its small size, high precision, and easy control, this
miniature stepper motor is widely used in cameras, optical
instruments, lenses, flashlights, precision medical equipment,
automatic door locks and other fields.
Mechanical Dimension:MM
Technical Features
The motor input part of the FPC, but can according to the customer
demand can be changed to a connecting line needle, PCB and other
forms.
The mounting bracket can be changed according to the customer's
request.
At the same time, we can match the corresponding drive system to
meet the needs of customers!
Our team has more than 10 years of stepper motor design,
development and production experience, so we can achieve product
development and auxiliary design according to the special needs of
customers!
Customer needs are our efforts, please feel free to contact us!
Typical Applications
Specifications
| Product Name | 8mm micro stepper motor |
| Model | VSM0810 |
| Rated Voltage | 5V |
| Current Per Phase | 300mA /phase |
| Coil Resistance | 16Ω±7% |
| No. Of phase | 2 Phases |
| Step Angle | 18 degree |
| Excitation Method | 2 Phase Excitation |
| Drive Mode | Bipolar Drive |
| Pull-In Torque | More Than 2.8 gf.cm At 480 pps |
| Pull-Out Torque | More Than 3.8 gf.cm At 480 pps |
| Noise | 45 dB(Max.) |
| Max. Response Frequency | More Than 800 pps,No Load |
| Max. Starting Frequency | More Than 2000 pps,No Load |
| Insulation Class | Class E for Coils |
| Insulation Strength | 100 V AC for One Second |
| Insulation Resistance | 10MΩ (DC 100 V) |
| Operating Temperature Range | -10~+60 ℃ |
| Weight | 2.2g(Ref.) |
| OEM & ODM SERVICE | AVAILABLE |
Competitive Advantage
- High quality and the best price.
- Fast deliver,storage company and rich inventory
- Near Shanghai port, the traffic is very convenient.
Type Of Wire Connect For Reference
Motor input method with Pin type, FPC, PCB, Lead wire etc.
These can be customized according to customer needs.
Type of Fixture Cover
The regular models are shown in the figure, and the special sizes
can be customized.
