miniature plastic gear planetary geared motor dc 3V
This planetary gear motor 10mm electronic medical equipment gear
motor DC motor has a rated power of 0.31 (W), a rated voltage of
1.5-12 (V), a rated current of 0.035 (A), a rated rotational speed
of 60-120 (rpm), and a size of 15.2 * 10 * 8.1 (mm). The miniature
speed reducer has a beautiful appearance, small size, long service
life, and low noise technology. High energy saving rate, no
momentum, high accuracy. Used in compact installation space

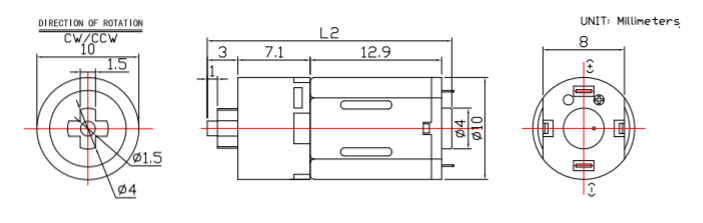

Mechanical Dimension:MM
Typical Applications
- Office Automatic Equipments
- Printer/paper Feeder
- Bank Equipments
Camera
label printer
- Electtric Door Locks
Label stripping machine
ISBN printer
Specifications
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL |
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | CURRENT | TORQUE |
| (r/min) | (A) | (r/min) | (A) | (g.cm) | (W) | (A) | (g.cm) |
| M10-171 | 1.0-3.5 | 3.0V CONSTANT | 50 | 0.030 | 32.69 | 0.057 | 79.6 | 0.027 | 0.107 | 230 |
The above products are only representative models, we can customize
the products according to customer requirements. Includes the length and diameter of the shaft.Our company can also
provide OEM services.
Torque Curve For Reference
About DC brushed motors
DC brushed motor is the most commonly used motor in the market.
The DC motor has brushes inside, l positive and negative pins (+
and -).
The speed of a DC motor can be controlled with different gear
ratios or with PWM (Pulse Width Modulation)
With the torque boost of the gearbox, the DC motor can reach higher
torque compared to the original torque of the motor.
Advantages of DC brushed motors
1. cheaper (compared to stepper motors)
2. Smaller size
3. Direct connection, easy to use
4. Wide range of use
5. Fast speed of rotation
6. Higher efficiency (compared with stepper motors)
Customization Service
- Out of the shaft length (the tail can be out of the shaft matching
encoder),
- The voltage,
- The rotational speed,
- Outlet mode,
- Coil resistance
- And connectors and so on.
