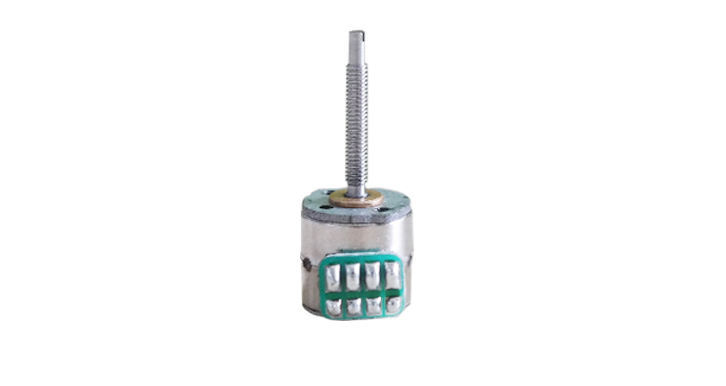

micro stepper motor 8mm 2 phase With screw pm stepper motor for
precision instrument
VSM08248 is a precision micro stepping motor body outer diameter
8MM, shaft outer diameter 1MM, the shaft length can be changed
according to the needs, and can be equipped with gears, pulleys,
Corresponding output devices such as worm and screw.
The motor has a basic step angle of 18 degrees and the motor runs
20 steps per week.
Because of its small size, high precision, and easy control, this
miniature stepper motor is widely used in cameras, optical
instruments, lenses, flashlights, precision medical equipment,
automatic door locks and other fields.
Mechanical Dimension:MM
Technical Features
8mm micro stepper motor is a small type motor for precision
instrument.
Typical Applications
Specifications
| Product Name | 8mm micro stepper motor |
| Model | VSM08284 |
| Rated Voltage | 5 V |
| Current Per Phase | 300 mA /phase |
| Coil Resistance | 16 Ω±7% |
| No. Of phase | 2 Phases |
| Step Angle | 18 degree |
| Excitation Method | 2 Phase Excitation |
| Drive Mode | Bipolar Drive |
| Pull-In Torque | 2.8 gf.cm At 480 pps |
| Pull-Out Torque | 3.8 gf.cm At 480 pps |
| Max. Response Frequency | 800 pps,At 5V DC |
| Max. Starting Frequency | 2000 pps,At 5V DC |
| Insulation Class | Class E for Coils |
| Insulation Strength | 100 V AC for One Second |
| Insulation Resistance | 1 MΩ (DC 100 V) |
| Operating Temperature Range | -30~+70 ℃ |
| Weight | 4 g(Ref.) |
| OEM & ODM SERVICE | AVAILABLE |
Competitive Advantage
- High quality and the best price.
- Fast deliver,storage company and rich inventory
- Near Shanghai port, the traffic is very convenient.
Torque Curve For Reference
Type Of Wire Connect For Reference
Motor input method with Pin type, FPC, PCB, Lead wire etc.
These can be customized according to customer needs.
Type of Fixture Cover
The regular models are shown in the figure, and the special sizes
can be customized.
Product Detail Presentation
