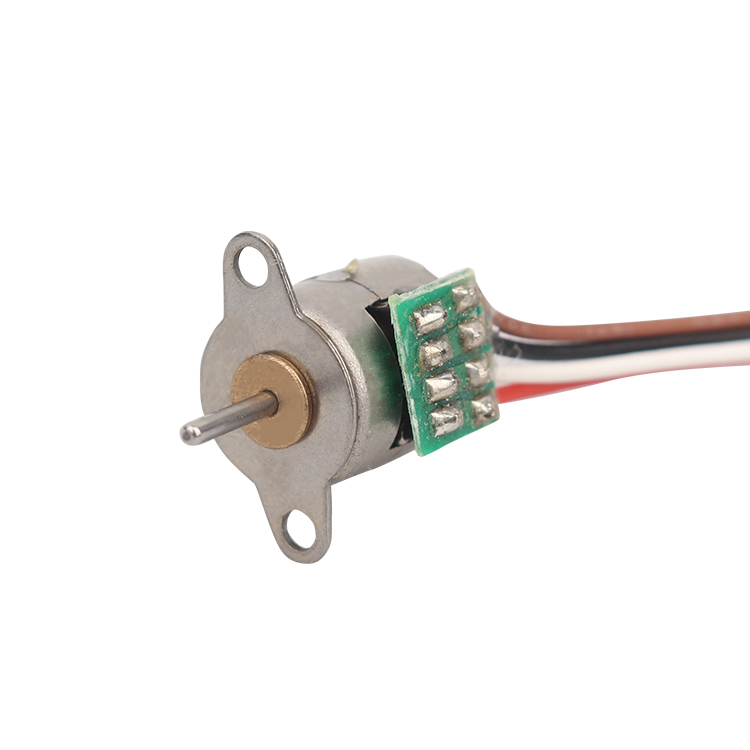

    High Speed Permanent Magnet Stepper Motor 2 Phase 4 Wire Small Size micro stepper motor VSM0801

    Ask Lasest Price
    Brand Name : VIC-TECH
    Model Number : VSM0801
    Certification : RoHS
    Price : $2~$5/Unit
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 1000000 Units/year
    Delivery Time : 15-30 work days
    • Product Details
    • Company Profile

    High Speed Permanent Magnet Stepper Motor 2 Phase 4 Wire Small Size micro stepper motor VSM0801

    micro stepper motor 8mm Long life 2 phase 4 wire stepper motor

    VSM0801 is precision stepper motor , widely used in lenze, camara, medical apparatus and instruments and laser instruments etc

    This product is precision micro step motor body outside diameter 8mm,body length 8.8mm, Out of the shaft diameter 1mm,the length of the shaft can be changted according to the requirements ,and can be equipped with gear wheel

    Corresponding output devices such as worm,screw and so on

    Motor basic step angle is 18 dagrees, the motor running 20 steps per week

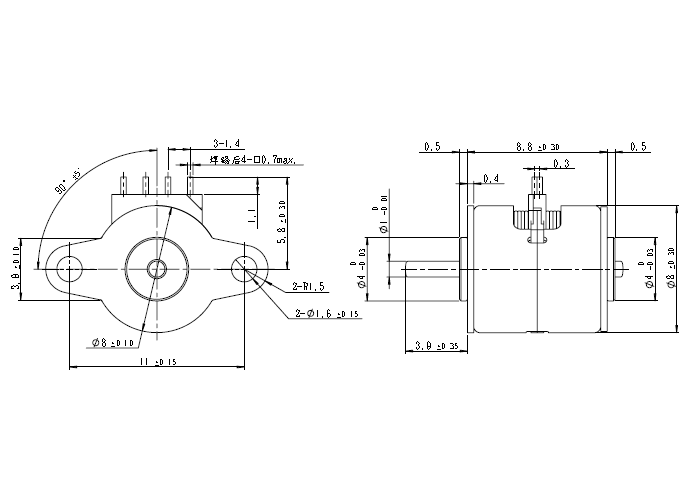

    Mechanical Dimension:MM

    Technical Features

    The motor input part of the FPC, but can according to the customer demand can be changed to a connecting line needle, PCB and other forms.
    The mounting bracket can be changed according to the customer's request.

    Typical Applications

    • Intelligent Security Products

    • Camera Lenses

    • Door Locks

    • Wearable device


    Specifications


    Product Name8mm micro stepper motor
    ModelVSM0801
    Rated Voltage3.3V
    Current Per Phase100 mA /phase
    Coil Resistance21Ω±7%
    No. Of phase2 Phases
    Step Angle18 degree
    Excitation Method2 Phase Excitation
    Drive ModeBipolar Drive
    Pull-In Torque1.5 gf.cm ,(AT 3.3V DC)
    Pull-Out Torque2.8gf.cm ,(AT 3.3V DC)
    Max. Response Frequency1200pps,(3.3V DC)
    Max. Starting Frequency2500 pps,(3.3V DC)
    Insulation ClassClass E for Coils
    Insulation Strength100 V AC for One Second
    Insulation Resistance51.0 MΩ (DC 100 V)
    Operating Temperature Range-10~+60 ℃
    Weight8 g(Ref.)
    OEM & ODM SERVICEAVAILABLE

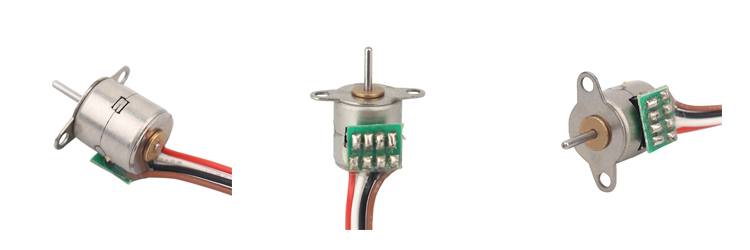

    Example of the same type


    asd 4

    asd 5

    Competitive Advantage

    • High quality and the best price.
    • Fast deliver,storage company and rich inventory
    • Near Shanghai port, the traffic is very convenient.

    Torque Curve For Reference

    sdf 3


    Product Detail Presentation
