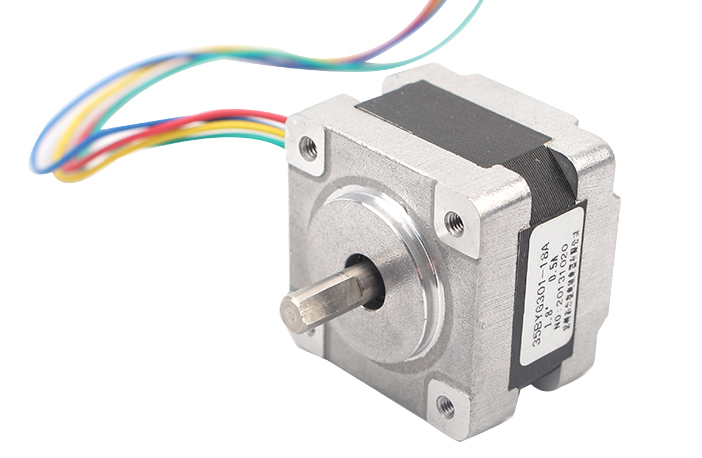

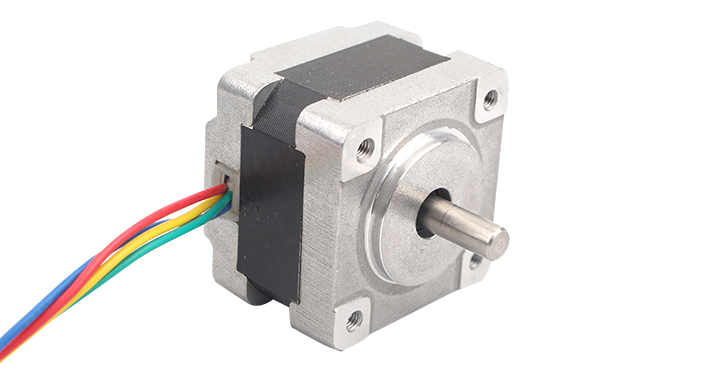

NEMA14 35mm stepper motor 1.8 degree per step 2 phase hybrid stepper motor for Engraving Machine Medical Equipment

Our stepper motor series are: 20mm, 28mm, 35mm, 39mm, 42mm, 57mm, 60mm, 86mm, 110mm, 130mm. Two-phase, three-phase and four-phase hybrid stepping motor. The DC brushless motor range includes 42BLS, 57BL(S), 86BLS, and matching DC brushless drivers.
Therefore, the products are in line with ROHS requirements. Applications include robotics, industrial electronic automation equipment, medical equipment, advertising equipment, printing equipment, textile machinery and so on. Has been exported to the United States, Germany, Italy, Spain, the United Kingdom, Mexico, Brazil and other more than 20 countries.

Mechanical Dimension:MM

Typical Applications

• 3D Printer
• Monitoring Equipment
• Medical Machinery
• Vending Machine
• Engineering Vehicle
• CNC Engraving Machine
• ATM Machine

Technique Parameter

Item		Specification
Step Angel		1.8°
Temperature Rise		80℃ max
Ambient Temperature		-20℃~+50℃
Insulation Resistance		100Ω Min.,500VDC
Dielectric Strength		500VAC for 1minute
Shaft Radial Play		0.02Max.(450g-load)
Shaft Axial Play		0.08Max.(450g-load)
Max.radial force		28N(20mm from the flange)
Max.axial force		10N

Specifications

The above products are only representative models, we can customize the products according to customer requirements. Includes the length and diameter of the shaft.Our company can also provide OEM services.

Torque Curve For Reference

Product Detail Presentation

CHANGZHOU VIC-TECH MOTOR TECHOLOGY CO., LTD
Changzhou Vic-Tech Motor Techology Co., Ltd has been specializing in producing micro motors and accessories since 2011.Our main products:Micro stepper motor,geared motor,underwater thruster and motor drivers and controllers.

We have a R & D team with 20 years of experience in motor development, providing customers with design and development custom services. By leveraging our honesty, dependability and quality, Vic-Tech Motor aims to continue as a pioneer in the sales overseas by seeking global partners.
