Lightweight ROV Thruster Motors 0.25a/11.1V 16-32V 300W 3.5kgf Thrust 300M Underwater For Underwater Equipment SW2820

Ask Lasest Price
Brand Name :	VIC-TECH
Model Number :	SW2820
Price :	$19.13-$32.8
Payment Terms :	T/T, Western Union, MoneyGram
Supply Ability :	100000 Units/year
Delivery Time :	15-30 work days

Add to Cart

Product Details
Company Profile

Lightweight ROV Thruster Motors 0.25a/11.1V 16-32V 300W 3.5kgf Thrust 300M Underwater For Underwater Equipment SW2820

SW2820 ROV thruster diving underwater equipment model submarine underwater

brushless motor

Product Name: SW2820 underwater underwater propeller diving equipment motor
Product brand: SUMAX
Product advantages: stable performance, long-lasting cruise, light and sensitive, and widely used
Product use: Wide range of applications in precision electronic equipment, automation equipment, water and underwater equipment, aircraft model drones and intelligent robots

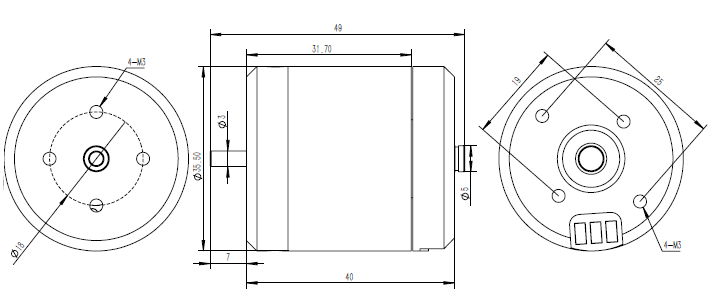

Mechanical Dimension:MM

Technical Features

24V

Model	Voltage(V)		No Load		Rated Load				Stall
	Operating Range	Rated	Speed (rpm)	Current (A)	Torque (mNm)	Speed (rpm)	Current (A)	Output P. (W)	Torque (mNm)	Current (A)
2820	24～36	24	7080	0.3	542	3540	13.5	201	1079	25A

36V

Model	Voltage(V)		No Load		Rated Load				Stall
	Operating Range	Rated	Speed (rpm)	Current (A)	Torque (mNm)	Speed (rpm)	Current (A)	Output P. (W)	Torque (mNm)	Current (A)
2820	24～36	36	10560	1	724	4631	16	400W	1650	35A

Typical Applications

Precision Electronic Instrument
Automation Equipment
Underwater Equipment
Aircraft Model Drone
Smart Robot

Specifications

Model:	SW2210B with short shaft
Weight:	Short shaft 75g
Unloaded current:	0.25A/11.1V
Rated voltage:	11.1V
Rated current:	6A
Rated power:	100W
Electrical resistance(Three Phase):	0.55Ω±5%
Motor inductance:	60.5uH
Nominal torque:	0.25N.M
Rated voltage:	11.1V
Dielectric strength:	AC300V/60s ≤5mA, No breakdown on the motor
Pressure resistance:	1.5Mpa,No leakage in motor and wire

Torque Curve For Reference

Instructions for use

Product Detail Presentation
