8mm micro stepper motor 3.3V 2 phase 18° chinese mini motor manufacturer
VSM0801 is precision stepper motor , widely used in lenze, camara, medical
apparatus and instruments and laser instruments etc

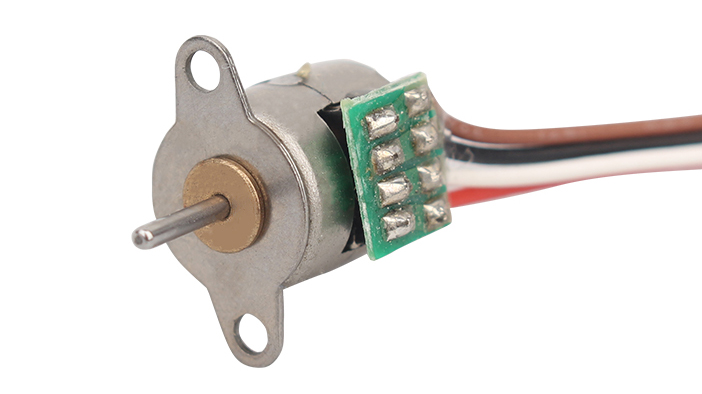

This product is precision micro step motor body outside diameter
8mm,body length 8.8mm, Out of the shaft diameter 1mm,the length of
the shaft can be changted according to the requirements ,and can be
equipped with gear wheel
Corresponding output devices such as worm,screw and so on
Motor basic step angle is 18 dagrees, the motor running 20 steps
per week.
The motor input part of the FPC, but can according to the customer
demand can be changed to a connecting line needle, PCB and other
forms.
The mounting bracket can be changed according to the customer's
request.
Mechanical Dimension:MM
Technical Features
10*9mm 10mm permanent magnet stepper motor, can be equipped with
10mm or 12mm gearbox
Compliance with EU Environment Standard
Stepper motor with gearbox,low consumption,low noise,high torque
Reduction
ration:1:3;1:5;1:10;1:30;1:50;1:100;1:150;1:210;1:298;1:380
All parameters can be customized
Typical Applications
Specifications
| PRODUCT NAME | 8 MM MICRO STEPPER MOTOR |
| MODEL | VSM0801 |
| MAX. STARTING FREQUENCY | 1200 PPS min. (AT 3.3 V DC) |
| MAX. SLEWING FREQUENCY | 2500 PPS min. (AT 3.3 V DC) |
| PULL IN TORQUE | 2.8gf-cm min. (AT 480PPS , 3.3V DC) |
| PULL OUT TORQUE | 3.8gf-cm min. (AT480 PPS , 3.3V DC) |
| INSULATION CLASS | CLASS E FOR COILS |
| INSULATION STRENGTH | 3.0mA (max.) |
| INSULATION RESISTENCE | 5 MΩ (DC 100 V) |
| OPERATING TEMPERATURE RANGE | -10~+60 ℃ |
| OEM & ODM SERVICE | AVAILABLE |
Competitive Advantage
- High quality and the best price.
- Fast deliver,storage company and rich inventory
- Near Shanghai port, the traffic is very convenient.
Torque Curve For Reference
Type Of Wire Connect For Reference
Motor input method with Pin type, FPC, PCB, Lead wire etc.
These can be customized according to customer needs.
Type of Fixture Cover
The regular models are shown in the figure, and the special sizes
can be customized.
Product Detail Presentation
