    7.5 Degree 12v DC Permanent Magnet Stepper Motor For Refrigerator Air Conditioning Monitor 20BYJ46

    Ask Lasest Price
    Brand Name : VIV-TECH
    Model Number : 20BYJ46
    Certification : RoHS
    Price : $0.98-3.5/unit
    Payment Terms : MoneyGram, T/T, Western Union,
    Supply Ability : 100000units/year
    Delivery Time : 15-30 work days
    • Product Details
    • Company Profile

    7.5 Degree 12v DC Permanent Magnet Stepper Motor For Refrigerator Air Conditioning Monitor 20BYJ46

    geared stepper motor 12V permanent magnet 7.5 degree stepper motor for refrigerator air conditioning monitor


    Widely used in robot,lock. Auto shutter, USB fan,Slot machine,Money detector, Coin refund devices,Currency

    Count machine, Towel dispensers,adjusment mechanism, limit switch


    Suitable to small diameter, low noise and big toque application


    We can provide samples for your test.

    Rotating speed is constant and can be made as you required.

    Ratio: 1/16,1/25,1/64

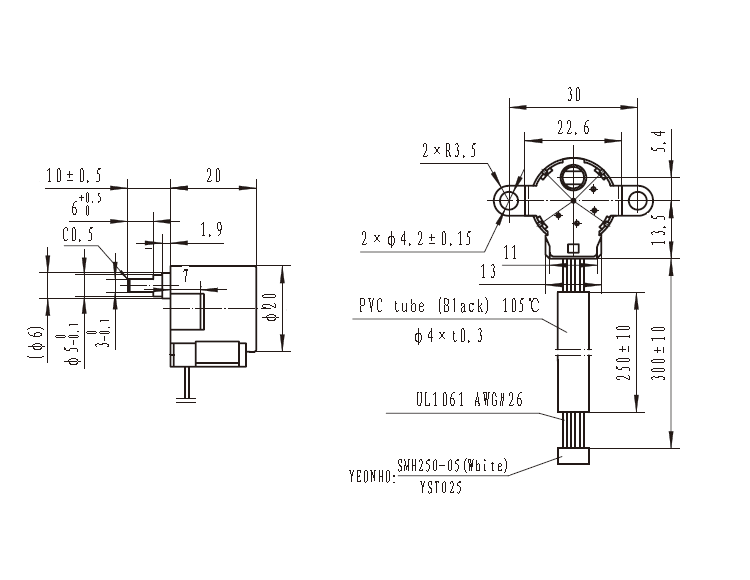

    Mechanical Dimension:MM

    Technical Features

    Widely used in robot,lock. Auto shutter, USB fan,Slot machine,Money detector, Coin refund devices,Currency

    Count machine, Towel dispensers,adjusment mechanism, limit switch


    Suitable to small diameter, low noise and big toque application


    We can provide samples for your test.

    Rotating speed is constant and can be made as you required.

    Ratio: 1/16,1/25,1/64

    Typical Applications

    • Application Highlights

      HVAC/R Valve Actuation Winding possibilities – Bipolar

      Office Automation Printers, Copiers, Data storage Maintenance free - motor is brushless

      Medical Applications Pill dispensing Analysers Cost effective - compact design, lower integration cost

      Other Industries & Applications Robotics Digitally controlled - Easy to use with a micro processor

      Telecommunication Antennae positioning Switching lines Open loop control - No encoders necessary

    Specifications


    PRODUCT NAME20BYJ46 PM Stepping Motor Gearbox
    MODEL20BYJ46
    STARTING FREQUENCY500 PPS min. (AT 12V DC)
    RESPONCE FREQUENCY900 PPS min. (AT 12V DC)
    DETENT TORQUE21.6mN.m
    RESISTENCE200MΩ±7%/phase
    INSULATION RESISTENCE100MΩ DC 500v
    TEMPERATURE RISE<40K(100HZ)
    NOISE<40dB(400HZ,No load,10cm)
    WEIGHTAbout 28g
    OEM & ODM SERVICEAVAILABLE

    Competitive Advantage

    • High quality and the best price.
    • Fast deliver,storage company and rich inventory
    • Near Shanghai port, the traffic is very convenient.

    Torque Curve For Reference


    Product Detail Presentation



    Type of Fixture Cover


    The regular models are shown in the figure, and the special sizes can be customized.

    Type of Wire Connect

    Motor input method with Pin type, FPC, PCB, Lead wire etc.

    These can be customized according to customer needs.
