SM1519 15mm permanent magnet stepper motor screw shaft linear motor

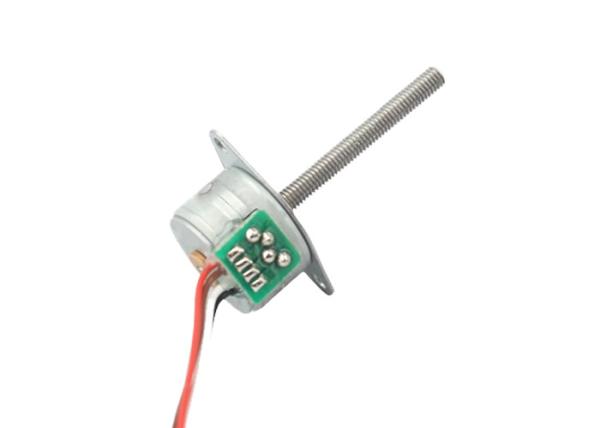

VSM1519 is a precision micro stepper motor, the output of the use of M3 screw
into linear motion, resulting in thrust, can be directly used as an
actuator to achieve customer needs action.
The basic stepper motor angle is 18 degrees, the motor runs 20
steps a week, so the displacement resolution can reach 0.025mm, to
achieve the purpose of precision control
Mechanical Dimension:MM
Technical Features
VSM1519 is a precision micro stepper motor, the output of the use of M3 screw
into linear motion, resulting in thrust, can be directly used as an
actuator to achieve customer needs action.
The basic stepper motor angle is 18 degrees, the motor runs 20
steps a week, so the displacement resolution can reach 0.025mm, to
achieve the purpose of precision control
Because of its small size, high precision, easy to control and
other excellent features, so the micro stepper motor used in high
speed driving small load occasions, such as camera lenses, optical
instruments, surveillance lens,
Precision medical equipment, automatic door locks and other fields
Motor input part icon for the light, but can according to the
customer demand can be changed to FPC cable, PCB and other forms
At the same time we can complete the corresponding drive system to
meet customer needs!
Our team has more than 10 years experience in the design,
development and production of micro motors, so we can develop and
design the products according to the special needs of customers!
Customer needs is the direction of our efforts, please feel free to
contact!
Typical Applications
Medical instruments
Precision instrument
Robot
Factory automation
Game machine
ATM equipment
Security equipment
Specifications
| Product Name | 15 mm permanent magnet stepper motor |
| Model | SM1519 |
| Rated Voltage | 3.0 V |
| Coil Resistance | 15 Ω ± 10% |
| No. Of phase | 2 Phases |
| Step Angle | 18 degree |
| Detent Torque | 5.0 gf-cm,At 200 pps |
| Pull-Out Torque | 6.0 gf-cm, At 200 pps |
| Max. Starting Frequency | 500 PPS min. (AT 3.0 V DC) |
| Max. Slewing Frequency | 560 PPS min. (AT 3.0 V DC) |
| Insulation Class | Class E for Coils |
| Insulation Strength | 100 V AC for One Second |
| Insulation Resistance | 50 MΩ (DC 100 V) |
| Operating Temperature Range | -15~+55 ℃ |
| Weight | 15 g(Ref.) |
| OEM & ODM SERVICE | AVAILABLE |
Competitive Advantage
Type of Fixture Cover
The regular models are shown in the figure, and the special sizes
can be customized.
Type of Wire Connect
Motor input method with Pin type, FPC, PCB, Lead wire etc.
These can be customized according to customer needs.
Product Detail Presentation
