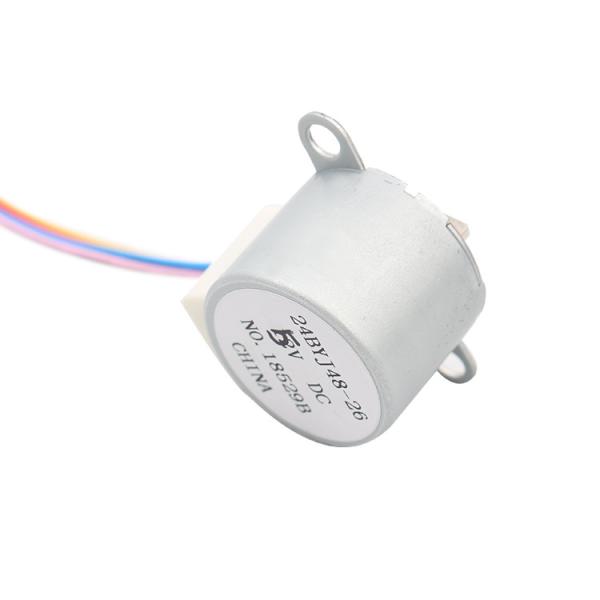

5V 24BYJ48 permanent magnet motor 2 phase 4 wire 1/64 ratio stepper
motor
This product is mainly used for sanitary ware, thermostatic valve,
hot water faucet, automatic adjustment of water temperature and
water flow, etc.
At the same time, it can realize other fields that require precise
control. Due to the realization of open-loop control, low-cost
position control is realized.
This is a pm reduction stepper motor with a diameter of 28mm,Out
put gear with friction clutch
The gear ratio of this motor is 16:1, 25:1, 32:1, 48.8:1, 64:1,
85:1.
The motor has a step angle of 5.625°/64 and is driven by 1-2 phase
excitation or 2-2 phase excitation.
Rated voltage: 5VDC; 12VDC; 24VDC
Used in gas valves, water purifier valves, instruments and other
automatic control areas of precision control.
At the same time, the external wiring part can be used according to
customer requirements for various types and lengths of connecting
lines, or FPC FFC.
The output part can be used in various ways such as gears, pulleys,
V-grooves and turbine screws.
The shape of the mounting plate and the angle of the outlet can be
adjusted according to customer needs!
Mechanical Dimension:MM
Parameters
| Voltage (V) | Resistance(Ω) | Pull-in torque 100PPS(mN*m) | Detent torque(mN*m) | Unload pull-in Frequency(PPS) |
| 5 | 18 | ≥98 | ≥29.4 | ≥500 |
| 12 | 60 | ≥117 | ≥29.4 | ≥500 |
| 12 | 70 | ≥68.7 | ≥29.4 | ≥500 |
| 24 | 200 | ≥68.7 | ≥29.4 | ≥500 |
| 24 | 300 | ≥58.8 | ≥29.4 | ≥500 |
Typical Applications
- Smart Toilet
- Smart kitchen
- Air Conditioning
- Refrigerator
- Vending Machine
- Entertainment Equipment
Specifications
| PRODUCT NAME | 24BYJ48 PM Stepping Motor Gearbox |
| MODEL | 24BYJ48-26 |
| STARTING FREQUENCY | 400 PPS min. (AT 5V DC) |
| RUNNING FREQUENCY | 450PPS min. (AT 5V DC) |
| DETENT TORQUE | 29.4mN.m |
| RESISTENCE | 100MΩ±7%/phase |
| OEM & ODM SERVICE | AVAILABLE |
Features & Advantage
1. High precision positioning
Since steppers move in precise repeatable steps, they excel in
applications requiring precise
positioning, by the number of steps the motor moves
2. High Precision speed control
Precise increments of movement also allow for excellent control of
rotational speed for process
automation and robotics. The rotational speed is determined by the
frequency of the pulses.
3. Pause and holding function
With control of the drive, the motor has lock function (there is
current through motor windings, but
the motor does not rotate), and there is still a holding torque
output.
4. Long life & low electromagnetic interference
The stepper motor has no brushes, and does not need to be
commutated by brushes like a brushed
DC motor. There is no friction of the brushes, which increases the
service life, has no electric sparks, and reduces electromagnetic
interference.
Product Detail Presentation
Type of Fixture Cover
The regular models are shown in the figure, and the special sizes
can be customized.
Type of Wire Connect
Motor input method with Pin type, FPC, PCB, Lead wire etc.
These can be customized according to customer needs.
