3.2v High Quality stepper motor valve 25PM linear motor valve for
precise position control such as valves
25BYJ412-1L stepper motor is mainly used in the fields of printer,
valve, fluid control, position control, etc. This motor has the
characteristics of small size, high precision and high strength.
The stepping motor has a built-in reduction gearbox to achieve a
reduction ratio of 1:10, improve the torque, and finally use the
output ejector with a stop-stop structure, so that the ram can be
moved back and forth without rotation. General thrust
More than 10 kg.
At the same time, the external wiring part can be used according to
customer requirements for various types and lengths of connecting
lines, or FPC FFC.The shape of the mounting plate and the angle of
the outlet can be adjusted according to customer needs!
Our team has more than 10 years of stepper motor design,
development and production experience, so we can achieve product
development and auxiliary design according to the special needs of
customers!Customer needs are our efforts, please feel free to
contact us!

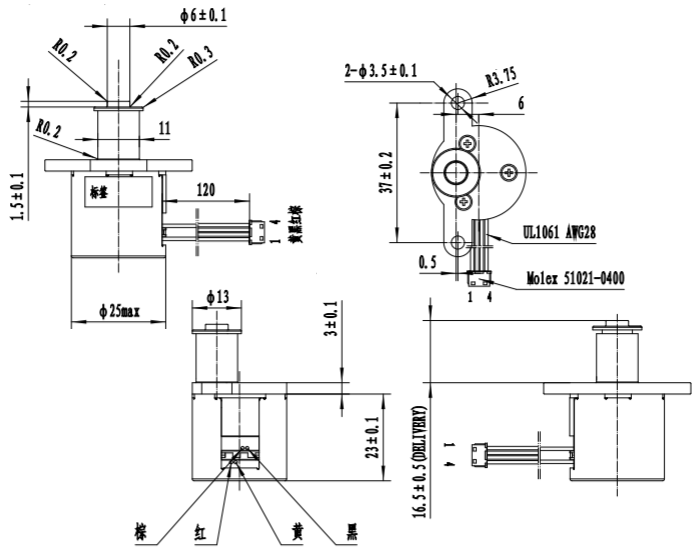

Mechanical Dimension:MM
Typical Applications
- Saliva Analyzer
- Blood Analyzer
- Welding Machine
- Intelligent Security Products
- Fiber Fusion Splicer
- Digital Electronics
Specifications
| Product Name | 25 mm geared stepper motor |
| Model | 25BYJ412-1L |
| Resistance | 100 mΩ±7%/phase |
| Starting Frequency | 500 pps ,400 PPS min. (AT 5V DC) |
| Response Frequency | 900 pps ,450PPS min. (AT 5V DC) |
| Detent Torque | 29.4mN.m |
| Operating Temperature Range | -0~+55 ℃ |
| OEM & ODM SERVICE | AVAILABLE |
Torque Curve For Reference
Type of Wire Connect
Motor input method with Pin type,FPC, PCB, Lead wire etc.
These can be customized according to customer needs.
Type of Fixture Cover
The regular models are shown in the figure, and the special sizes
can be customized.
Product Detail Presentation
