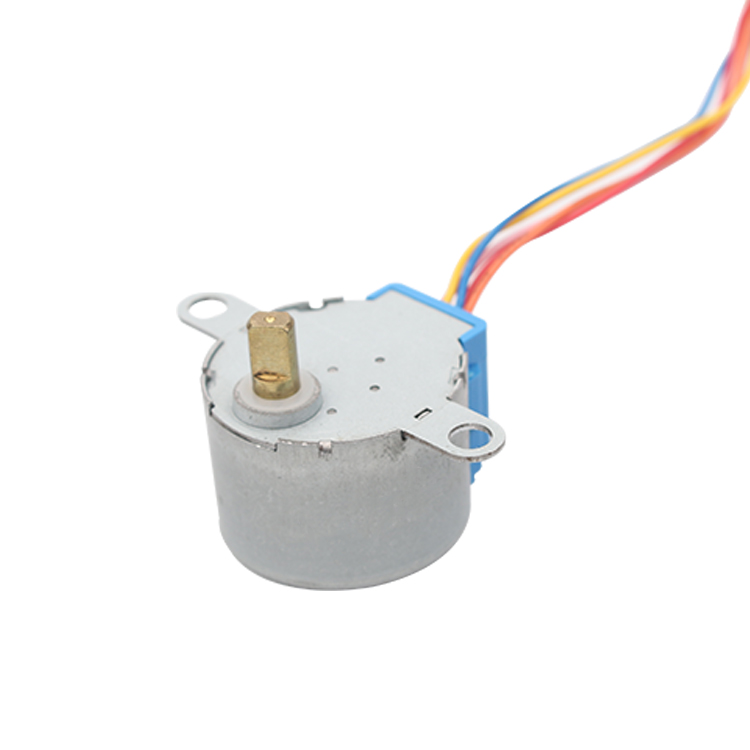

28BYJ48 geared stepper motor Chinese wholesale supply low noise
permanent magnet stepper motor
28BYJ48 stepper motor is mainly used for sanitary ware.
Thermostatic valve Hot water faucet Automatic control and
adjustment of water temperature and water flow such as Rainwater.
At the same time, it can realize other fields that require precise
control. Due to the realization of open-loop control and low-cost
position control, it is widely used in various fields of gas
control, water purifier valves, instruments and other automatic
control precision control.
At the same time, the external wiring part can be used according to
customer requirements for various types and lengths of connecting
lines, or FPC FFC.
The output part can be used in various ways such as gears, pulleys,
V-grooves and turbine screws.
Our team has more than 10 years of stepper motor design,
development and production experience, so we can achieve product
development and auxiliary design according to the special needs of
customers!
Customer needs are our efforts, please feel free to contact us!
The shape of the mounting plate and the angle of the outlet can be
adjusted according to customer needs!
Mechanical Dimension:MM
Technical Features
Application Highlights
HVAC/R Valve Actuation Winding possibilities – Bipolar
Office Automation Printers, Copiers, Data storage Maintenance free - motor is brushless
Medical Applications Pill dispensing Analysers Cost effective - compact design, lower integration cost
Other Industries & Applications Robotics Digitally controlled - Easy to use with a micro processor
Telecommunication Antennae positioning Switching lines Open loop
control - No encoders necessary
Typical Applications
- Saliva Analyzer
- Blood Analyzer
- Welding Machine
- Intelligent Security Products
- Fiber Fusion Splicer
- Digital Electronics
Specifications
| Product Name | 28 mm geared stepper motor |
| Model | 28BYJ48 |
| Resistance | 120 mΩ ± 10%/ phase |
Current Per Phase | 100 mA/phase |
| Starting Frequency | 800 pps. (AT 12 V DC) |
| Pull in Torque | 500 gf.cm At 100 pps |
| Dielectric Strength | 600 VAC 1 Second |
| Operating Temperature Range | -0~+ 60 ℃ |
| OEM & ODM SERVICE | AVAILABLE |
Type of Wire Connect
Motor input method with Pin type,FPC, PCB, Lead wire etc.
These can be customized according to customer needs.
Shaft Type
Out shaft standard as follows,also can customerized due to the user
drawings
welcome to contact customer service for more types
Round Type : DIA3mm. 4mm. 5mm
D-cut Type: DIA3-D2.5 DIA4-D3 etc
Screw Type: M3 M4 M5 Serial
Trape Type
I-cut Type: DIA3-I2 DIA4-I3
Other Type: Shaft with a hole etc
Type of Fixture Cover
The regular models are shown in the figure, and the special sizes
can be customized.

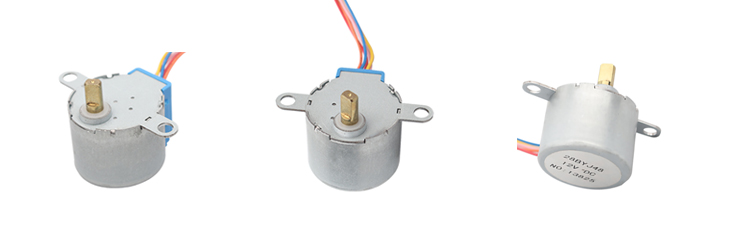

Product Detail Presentation
