25mm 4 Phase 6 Wires 7.5 degreeGeared Stepper Motor Chinese
Wholesale Supply PM Stepper Motor 25-048S-193
Permannent Magnet Stepper Motor Gearbox.This product is mainly used
for sanitary ware, thermostatic valve, hot water faucet, automatic
adjustment of water temperature and water flow, etc.
At the same time, it can realize other fields that require precise
control. Due to the realization of open-loop control, low-cost
position control is realized.
Used in gas valves, water purifier valves, instruments and other
automatic control areas of precision control.
At the same time, the external wiring part can be used according to
customer requirements for various types and lengths of connecting
lines, or FPC FFC.
The output part can be used in various ways such as gears, pulleys,
V-grooves and turbine screws.
The shape of the mounting plate and the angle of the outlet can be
adjusted according to customer needs!
Mechanical Dimension:MM
Typical Applications
- Saliva Analyzer
- Blood Analyzer
- Welding Machine
- Intelligent Security Products
- Fiber Fusion Splicer
- Digital Electronics
Specifications
| Product Name | 25 mm geared stepper motor |
| Model | SM25-048-193 |
| Resistance | 100 mΩ ± 10%/ phase |
Current Per Phase | 120 mA/phase |
| Starting Frequency | 500 pps. (AT 12 V DC) |
| Pull in Torque | 400 gf.cm At 100 pps |
| Holding Torque | 1000 gf.cm |
| Dielectric Strength | 600 VAC 1 Second |
| Operating Temperature Range | -0~+ 60 ℃ |
| OEM & ODM SERVICE | AVAILABLE |
Type of Wire Connect
Motor input method with Pin type,FPC, PCB, Lead wire etc.
These can be customized according to customer needs.
Shaft Type
Out shaft standard as follows,also can customerized due to the user
drawings
welcome to contact customer service for more types
Round Type : DIA3mm. 4mm. 5mm
D-cut Type: DIA3-D2.5 DIA4-D3 etc
Screw Type: M3 M4 M5 Serial
Trape Type
I-cut Type: DIA3-I2 DIA4-I3
Other Type: Shaft with a hole etc
Type of Fixture Cover
The regular models are shown in the figure, and the special sizes
can be customized.

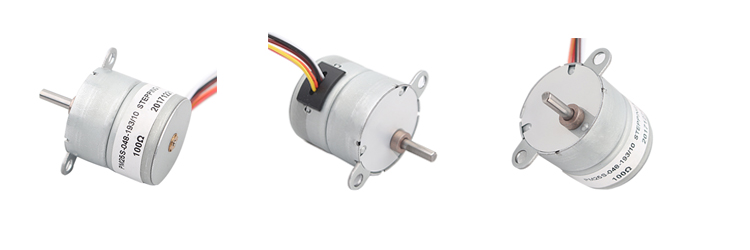

Product Detail Presentation
