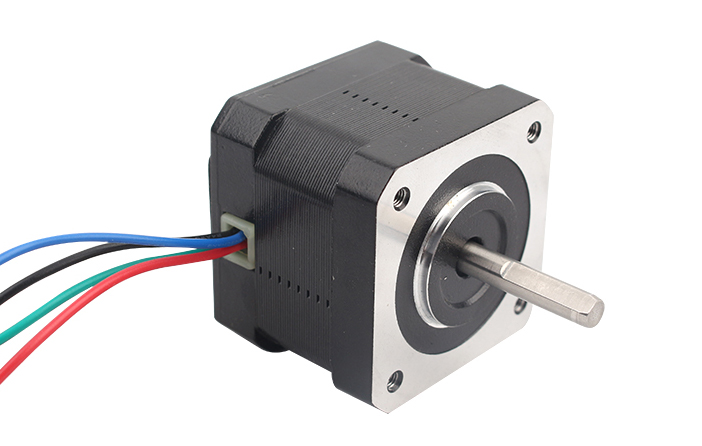

NEMA17 0.9° 42mm hybrid stepper motor 2 phase motor for 3d printer

Stepper motors are motion systems allowing to have a high positioning precision.
With their high power already at low speed, their stall torque and the possibility to divide the steps in micro steps,
stepper motors can provide direct and precise motions in a small volume.
Permanent magnet and hybrid technologies are used to provide a full range of solutions.
The absence of mechanical commutation gives to these motors a long life time which is usually given by the sleeves
according to the load applied on the shaft.

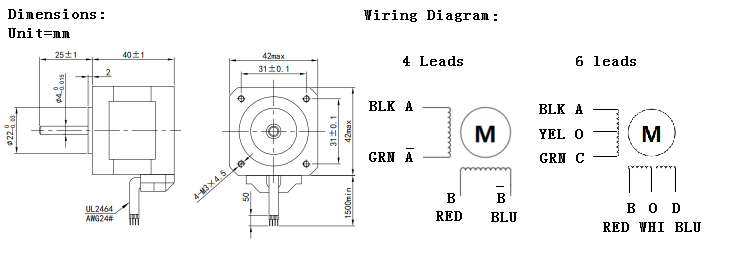

Mechanical Dimension:MM

Typical Applications

• ​Textile Equipment
• Automatic Control
• Packing Machine
• Engineering Vehicle
• 3D Printer
• New Energy
• Gate Openers
• Vending Machine
• Conveyor System
• Medical Equipment
• Fluid Control
• OA Financial Equipment

Specifications

Competitive Advantage

• High quality and the best price.

• Fast deliver,storage company and adequate inventory.

• Near Shanghai port, the traffice is very convenient.

Torque Curve For Reference

Customization service

Motor’s design can be adjusted based on customer’s requirement including:
Motor’s diameter: we have 6mm, 8mm, 10mm, 15mm and 20 mm diameter motor
Coil resistance/ rated voltage: coil resistance is adjustable, and with higher resistance, motor’s rated voltage is higher.
Bracket design/ lead screw length: if customer want the bracket to be longer/short, with special design such as mounting holes, it’s adjustable.
PCB + cables + connector: PCB’s design, cable length and connector pitch are all adjustable, they can be replaced into FPC if customers require.

Product Detail Presentation

Tag:

CHANGZHOU VIC-TECH MOTOR TECHOLOGY CO., LTD
Changzhou Vic-Tech Motor Techology Co., Ltd has been specializing in producing micro motors and accessories since 2011.Our main products:Micro stepper motor,geared motor,underwater thruster and motor drivers and controllers.

We have a R & D team with 20 years of experience in motor development, providing customers with design and development custom services. By leveraging our honesty, dependability and quality, Vic-Tech Motor aims to continue as a pioneer in the sales overseas by seeking global partners.
