Pm stepper motor 20mm micro linear actuator step motor for electric
device 18degree step angle

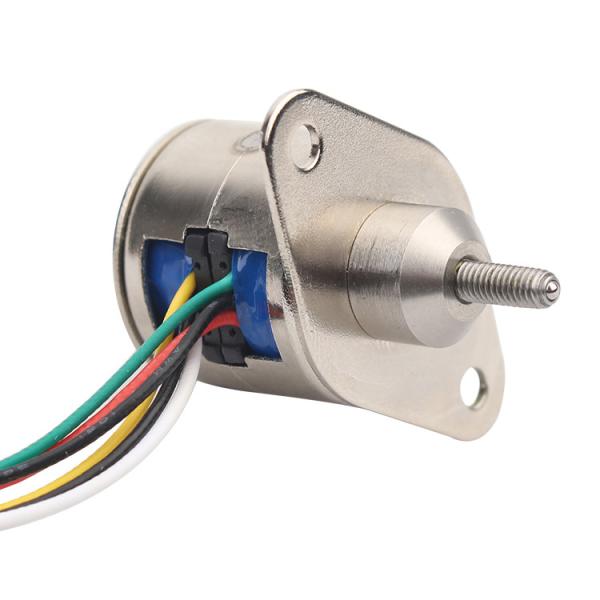

PM20L-020 is a Stepper motor whit a lead screw, when rotor running
CW or CCW,the lead screw will go forword or backword.
at the same time ,the lead will rotating.
motor stepper step angle is 18 degree, lead pitch is 0.5mm, when
motor stepper rotate one step, the lead move 0.025mm
Mechanical Dimension:MM
Technical Features
PM20L-020 is a Stepper motor whit a lead screw, when rotor running
CW or CCW,the lead screw will go forword or backword.
at the same time ,the lead will rotating.
motor stepper step angle is 18 degree, lead pitch is 0.5mm, when
motor stepper rotate one step, the lead move 0.025mm
This product is a patented product of the company. It converts the
rotation of the motor into a linear motion through the relative
movement of the internal rotor and the screw. It is mainly used in
valve control, automatic buttons, medical equipment, textile
machines, robots and other related fields.
At the same time, the external wiring part can use four terminal
posts (light pins) or connecting wires, or FPC FFC PCB, etc.
according to customer requirements.
The output part is linear.
Typical Applications
Specifications
Product Name | PM20 linear stepper motor |
Model | PM20L-020 |
Resistance | 21Ω±10% |
Pull in frequency | 670PPS |
The MarkThrust | 600g |
Inductance | 4.5REF (mH) |
Mounting pitch | 27±0.2 mm |
Mounting aperture | φ3mm (Through hole) |
Axial height | 21.3 mm 8.3mm |
Insulation Class | class E |
lead wrie | UL 1061 AWG26 |
OEM & ODM Srvice | Available |
Competitive Advantage
High quality and the best price.
Fast deliver,storage company and rich inventory
Near Shanghai port, the traffic is very convenient.
Product Detail Presentation
