25mm high torque micro geared stepper motor 5V geared stepper
motors
These specification applies to the Permanent Magnet STEPPING MOTOR, Model name is SM25-048S-8118G.This motor stepper is a dia 25pm type stepper motor stepper, fixing
a gear box.so that the torque can higher
for mounting we have two type standard.
Mechanical Dimension:MM
Technical Features
These specification applies to the Permanent Magnet STEPPING MOTOR, Model name is SM25-048S-8118G.This motor stepper is a dia 25pm type stepper motor stepper, fixing
a gear box.so that the torque can higher
for mounting we have two type standard.
NOTED:
Transmission Shaft can be made according to customer's requirement.
APPLICATIONS:
Home Applience Air-conditioning
Refrigerator Intelligent Sanitary
Automatic Door Lock CCTV Monitor
Electronic Instrument
Typical Applications
- Saliva Analyzer
- Blood Analyzer
- Welding Machine
- Intelligent Security Products
- Fiber Fusion Splicer
- Digital Electronics
Specifications
| PRODUCT NAME | 25mm geared stepper motor |
| MODEL | SM25-048S-8118G |
| STARTING FREQUENCY | 720PPS min. (AT 24V DC) |
| RESPONCE FREQUENCY | 900 PPS min. (AT 24V DC) |
| DETENT TORQUE | 600gf.cm |
| RESISTENCE | 10Ω±10% |
| OPERATING TEMPERATURE RANGE | -0~+55 ℃ |
| OEM & ODM SERVICE | AVAILABLE |

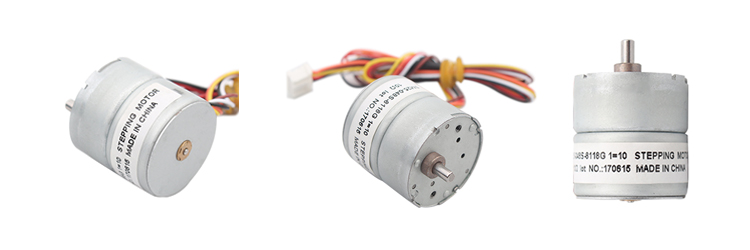

Product Detail Presentation

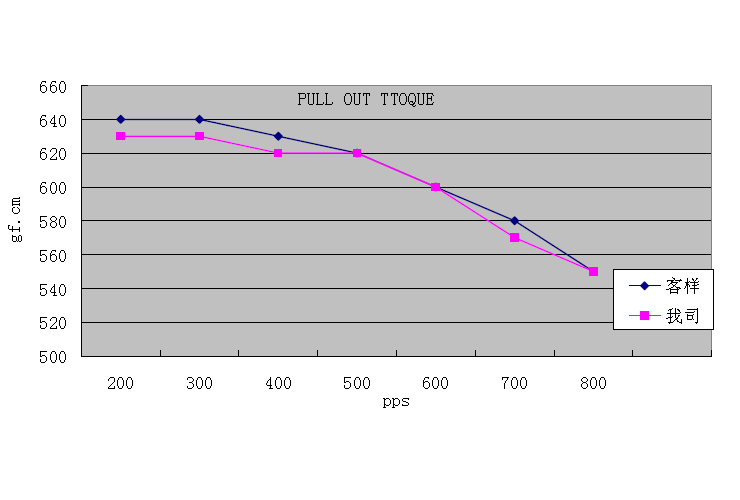

Torque Curve For Reference
Type of Wire Connect
Motor input method with Pin type,FPC, PCB, Lead wire etc.
These can be customized according to customer needs.
Shaft Type
Out shaft standard as follows,also can customerized due to the user
drawings
welcome to contact customer service for more types
Round Type : DIA3mm. 4mm. 5mm
D-cut Type: DIA3-D2.5 DIA4-D3 etc
Screw Type: M3 M4 M5 Serial
Trape Type
I-cut Type: DIA3-I2 DIA4-I3
Other Type: Shaft with a hole etc
Type of Fixture Cover
The regular models are shown in the figure, and the special sizes
can be customized.
