    5V 4 Lines Miniature Linear Stepper Motor High Torque Lightweight 25BYZ-B010B

    Ask Lasest Price
    Brand Name : VIC-TECH
    Model Number : 25BYZ-B010B
    Certification : RoHS
    Price : $6.8~$15/Unit
    Payment Terms : Western Union, T/T, L/C, MoneyGram
    Supply Ability : 1000000 Units/year
    Delivery Time : 15-30 work days
    • Product Details
    • Company Profile

    5V 4 Lines Miniature Linear Stepper Motor High Torque Lightweight 25BYZ-B010B

    25BYZ-B010B micro linear stepper motor 12V 6 lines high torque stepper motor for Medical Instrument


    25BYZ-B010B is a special product of the company. The rotation of the motor is converted into linear motion by the relative movement of the internal rotor and the screw. It is mainly used in valve control, automatic buttons, medical equipment, textile machines, printers, robots and other related fields.

    At the same time, the external wiring part can use four (or five and six, also bipolar or unipolar drive) binding posts (light pins) or connecting wires, or FPC FFC PCB, etc. according to customer requirements.

    The output part is linear.


    Mechanical Dimension:MM

    Our team has more than 10 years of stepper motor design, development and production experience, so we can achieve product development and auxiliary design according to the special needs of customers!

    Customer needs are our efforts, please feel free to contact us!

    Typical Applications

    • Medical Equipment

    • Automatic Control

    • 3D Printer

    • Precision Calibration

    • Precision Fluid Measurement

    • Precise Position Movement

    Specifications

    Product Name

    25BYZ-B010B linear stepper motor

    Model

    25BYZ-B010B

    Resistance

    22Ω±7%

    Travel Per Step Avail

    0.0417mm

    The Mark Thrust

    20N

    The Mark Pull20N

    Inductance

    23.5±20% (mH)

    Current Per Phase0.23A

    After All Journey

    ≥50mm

    Protection Rate

    IP30

    Life

    1500 000 return

    Operating Temp Range-10℃~40℃

    Insulation Class

    class E

    Insulation Resistance>100MΩ

    lead wrie

    UL1061 28#

    Weight43g

    OEM & ODM Srvice

    Available


    Competitive Advantage

    • High quality and the best price.

    • Fast deliver,storage company and rich inventory

    • Near Shanghai port, the traffic is very convenient.

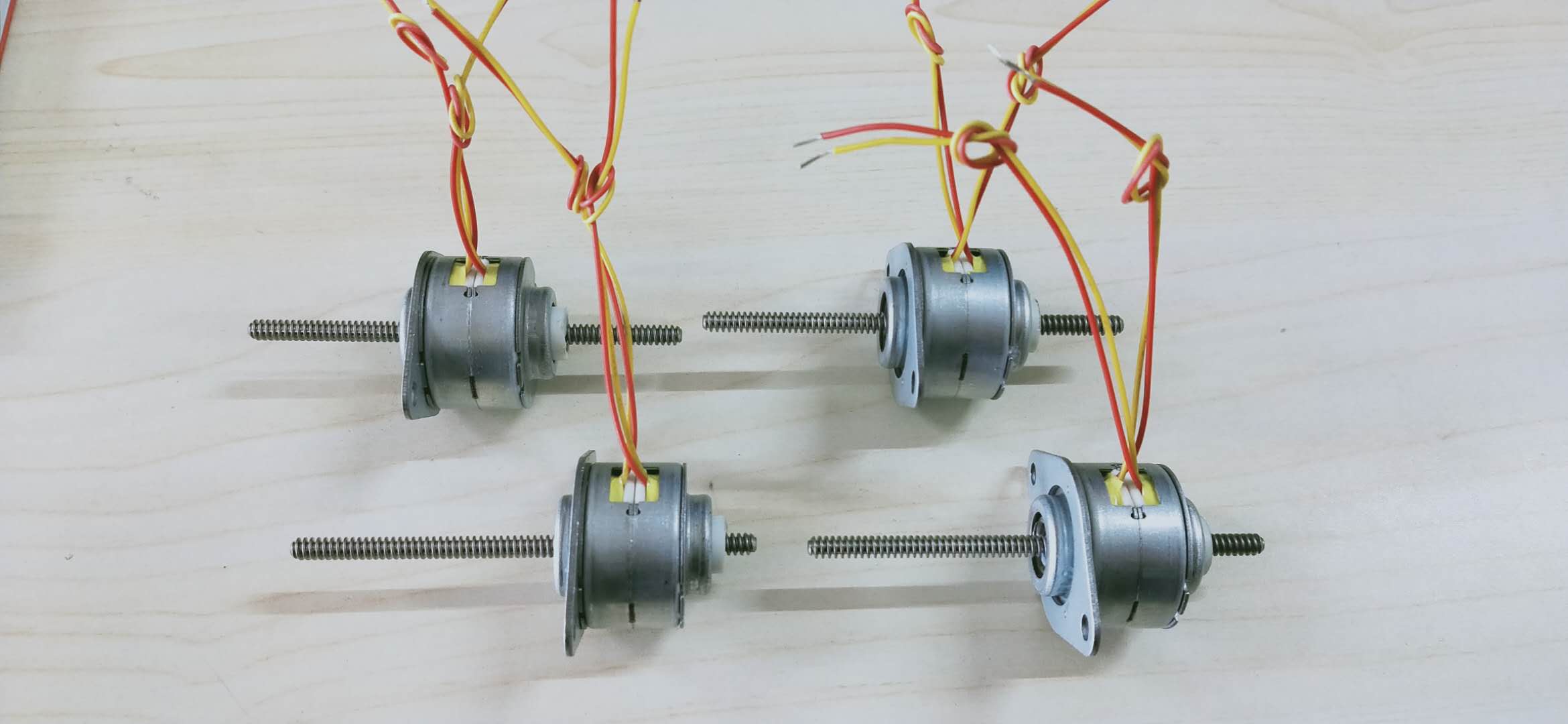

    Product Detail Presentation
