8mm micro gear box 10*8 mm high torque gearbox for DC motor and
Stepper motor
Gear reduction ratio is 1:10 1:100 1:200 1:250, the customer can according to different use
torque speed requirements to match the speed ratio, at the same
time
Given the proper driving frequency of the stepper motor can reach
the determination of the speed and torque.
This product gear box uses the most advanced equipment in the
international processing related parts, so the high precision, high
efficiency, low noise, and the use of reasonable and reliable
process, make the product has better reliability.
Mechanical Dimension:MM
Technical Features
Out shaft standard as follows,also can customerized due to the user
drawings
welcome to contact customer service for more types
Round Type : DIA3mm. 4mm. 5mm
D-cut Type: DIA3-D2.5 DIA4-D3 etc
Screw Type: M3 M4 M5 Serial
Trape Type
I-cut Type: DIA3-I2 DIA4-I3
Other Type: Shaft with a hole etc
Specifications
| No. | Reduction | Ratio Number of step | Dimensions | Rated torque | Instantaneous allowable torque | Noise |
| 1 | 3 | 2 | 8*6 | 100g.cm | 300g.cm | <30db |
| 2 | 20 | 2 | 8*6 | 100g.cm | 300g.cm | <30db |
| 3 | 100 | 4 | 8*6 | 200g.cm | 600g.cm | <30db |
Can be used with motor interface size
| Screw hole type | Screw hole nominal size | Screw hole pitch |
| Level | M1.2 | 5.4mm |
Installation method: Pressing the motor gear on the motor shaft -
connecting plate and motor mounting - the reducer is fixed on the
connecting plate.
Operating temperature: ‘-10°C~ +60°C
Environmental certification: ROHS REACH-SVHC
Competitive Advantage
GM gear motor series micro gear reducer has nearly ten shape
options, nearly 100 kinds of reduction ratio, hundreds of output
shaft types
Good electrical, mechanical properties and consistency
Low noise, low load current, large output torque
Environmentally friendly materials, through the EU's most stringent
ROHS certification, REACH-SVHC certification
Customized special micro gear reduction motors according to
customer requirements.
Typical Applications
The miniature gearbox is mainly suitable for micro gear reducer
motors, and the miniature gear reducer motor is mainly used for
industrial product drive,Instrumentation,medical
instruments,Electric household appliances,Acoustic image,office
automation.
The fields of aerospace and automobile are the electromechanical
products that are developing in the direction of scientific and
technological intelligence automation in the development of
national economy.
Typical products such as:
| Coffee machine | camera | vending machine | Money counter |
| Electronic door lock | projector | CD-ROM | hair dryer |
| electrical tools | monitor | Game machine | Electric shaver |
| Camera instrument | robot | Gas valve | Massager, etc. |
In addition, our company can also design and manufacture special
miniature gear reducer motors according to customer needs.

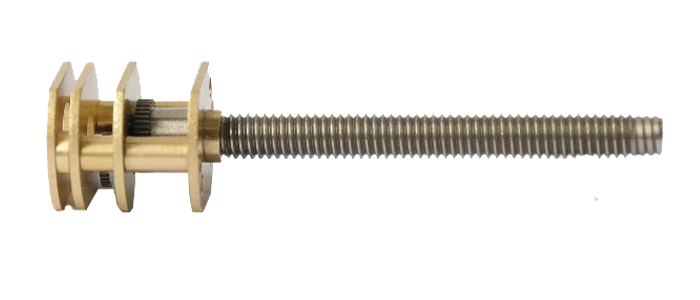

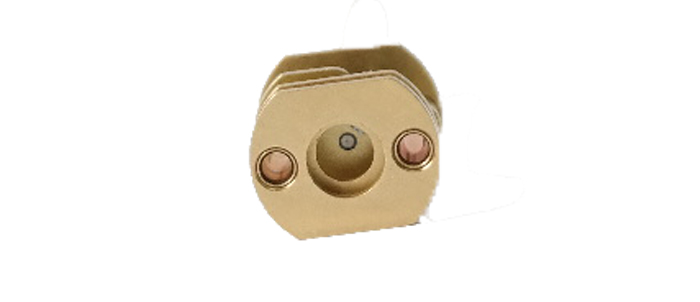

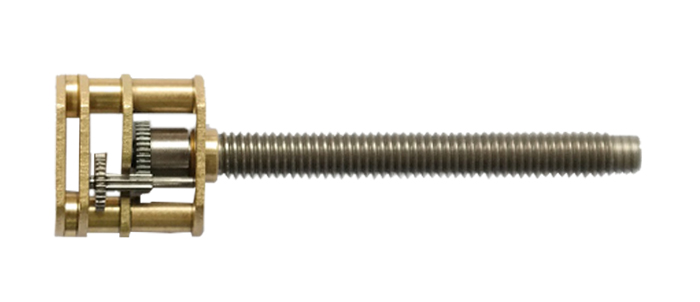

Product Detail Presentation
