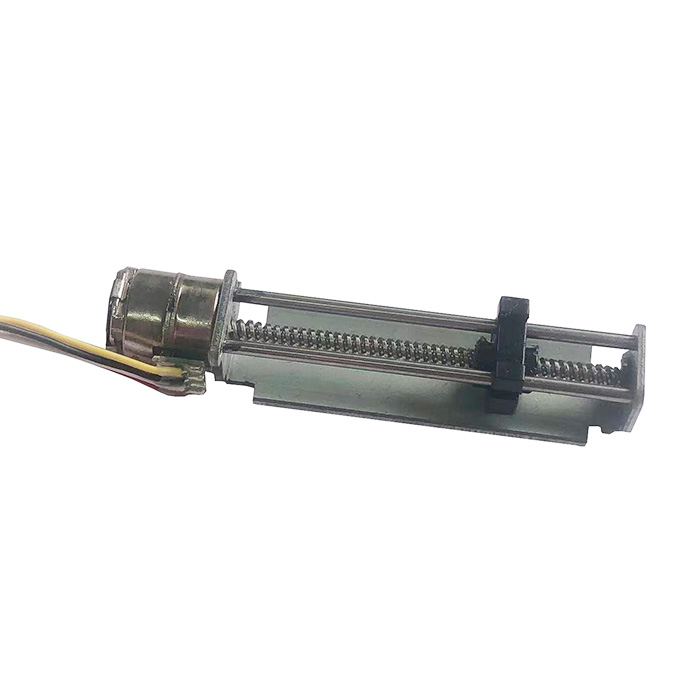

SM10-42L 10mm diameter mini linear actuator stepper motor with
bracket and slider
This is a 10mm diameter linear stepper motor with a trapezoidal
lead screw, and plastic nut.
The lead screw type is: Tr2.2*P0.9*2N, which means it has 2.2mm
outer diameter, 0.9mm pitch, double starts and 1.8mm lead.
When the motor rotate one turn, slider moves 1.8mm distance.
This lead screw has longer lead, thus its slider moves faster than
other motor types, and slider’s thrust is much smaller.
The connector type is JST SHR-06V-S-B, 1.0mm pitch, 4 pins.
The connector can be replaced with other type if customer wants to
change connector’s pitch.
Electric Stepper Motors Specifications
| Model No. | SM10-42L |
| Motor type | Bipolar stepper motor |
| Rated voltage | 20Ω/phase |
| Step angle | 18°/step |
| Phase No. | 2 phases |
| Lead screw type | Tr2.2*P0.9*2N |
| Pull-in torque | 5 gf*cm at 500 PPS |
| Rated voltage | 5V DC |
Electric Stepper Motors Technical Features
- VSM08102 is a precision micro step motor, the output shaft with a pitch of
0.4mm of the screw, through the screw and the screw rod supporting
the turn of the screw into a thrust.
- Motor basic step angle is 18 degrees, the motor running 20 steps
every week, so the resolution of displacement can reach 0.02mm, to
achieve the purpose of precision control.
- Actuator aspects using subdivision drive way to meet.
- Because of its small size, high precision, easy to control and
other excellent characteristics, so this micro stepper motor is
widely used in the camera, optical instruments, lenses, precision
medical devices, automatic door locks and other fields.
- The motor input part of the FPC, but can according to the customer
demand can be changed to a connecting line needle, PCB and other
forms.
- The mounting bracket can be changed according to the customer's
request.
Electric Stepper Motors Typical Applications
Product Detail Presentation
Mechanical Dimension (Unit: mm)
Competitive Advantage
- High quality and the best price.
- Fast deliver,storage company and rich inventory
- Near Shanghai port, the traffic is very convenient.
Torque Curve For Reference
Type Of Wire Connect For Reference
Motor input method with Pin type, FPC, PCB, Lead wire etc.
These can be customized according to customer needs.
