High Quality stepper motor valve 25PM linear motor valve for
precise position control such as valves
25BYJ412-9L stepping motor is mainly used in printers, valves,
fluid control, position control and other fields. The motor has the
characteristics of small size, high precision and high strength.
The stepping motor has a built-in reduction gear box to achieve a
reduction ratio of 1:10 and increase the torque. Finally, an output
ejector rod with a stop-stop structure is adopted, so that the
plunger can move back and forth without rotating. normal thrust
Up to 10kg.
At the same time, the external wiring part can choose various types
and lengths of connecting wires, or FPC FFC according to customer
requirements. The shape and outlet angle of the mounting plate can
be adjusted according to customer needs!
Our team has more than 10 years of experience in stepper motor
design, development and production, and can realize product
development and auxiliary design according to the special needs of
customers! Customer needs are our efforts, please feel free to
contact us!
Mechanical Dimension:MM
Typical Applications
- Saliva Analyzer
- Blood Analyzer
- Welding Machine
- Intelligent Security Products
- Fiber Fusion Splicer
- Digital Electronics
Specifications
| Product Name | 25 mm geared stepper motor |
| Model | 25BYJ412-9L |
| Resistance | 5Ω±7%/phase |
| Drive Mode | 2-2 Phase |
| Step angle | 7.5° |
| Self-locating torque | 60g.cm(ref) |
| Operating Temperature Range | -20~+50 ℃ |
| OEM & ODM SERVICE | AVAILABLE |
Torque Curve For Reference
Type of Wire Connect
Motor input method with Pin type,FPC, PCB, Lead wire etc.
These can be customized according to customer needs.
Type of Fixture Cover
The regular models are shown in the figure, and the special sizes
can be customized.

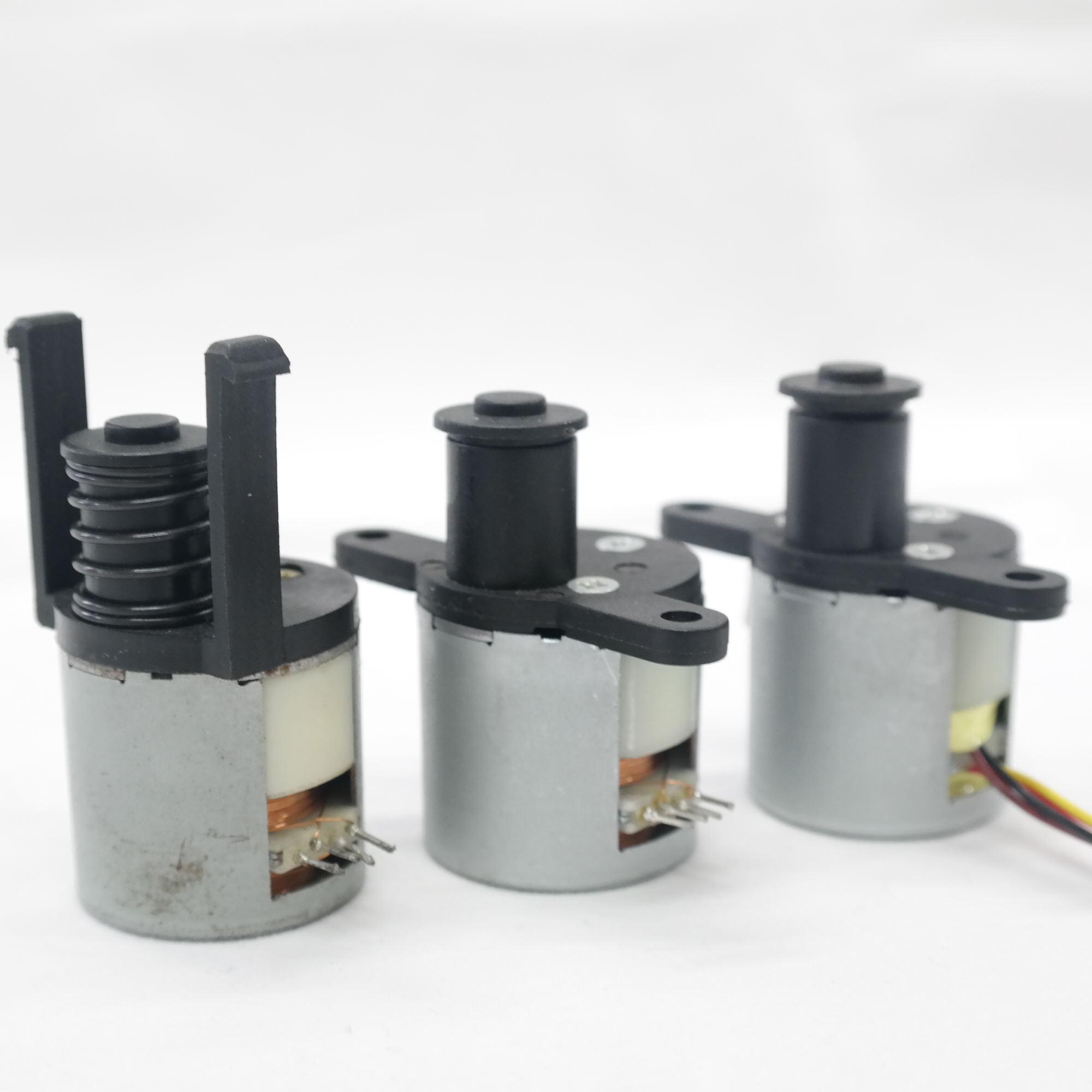

Product Detail Presentation
Packaging and Shipping information:
Samples are packed with foam sponge inside paper box.
For mass production, products are packed in paper carton.
For sea shipping (Mass production), cartons are packed on pallet.
Shipping time:
By express(DHL/ UPS/ Fedex/ TNT): 5~12 days
By 4PX express: 10~20 days
Sea shipping: 40~60 days (depends on different countries)
