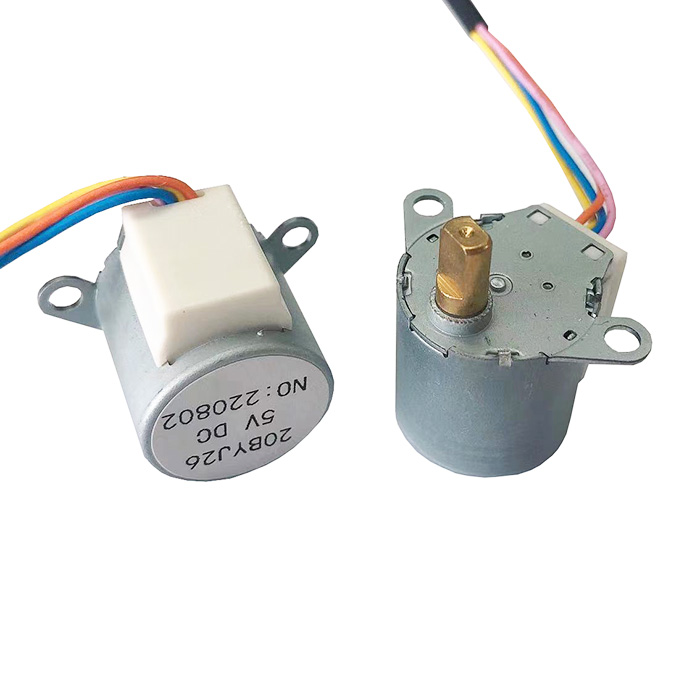

20BYJ26 Bipolar Permanent Magnet Stepper Motor 5V with Plastic Gearbox and 4 Cables

This is a 20mm bipolar stepper motor with 4 cables (2 phases)

There is a gearbox in the motor and gear ratio is 85:1.

If customers need unipolar motor with 5 cable, we are able to customized it and change coil winding of the motor.

Coil resistance is 40Ω/phase, and this motor’s rated voltage is 5V DC.

If customers require higher rated voltage, we can adjust coil winding and increase its resistance.

The gears inside gearbox are POM plastic gears, we can also make it metal for higher torque since metallic gears have higher strength.

Mechanical Dimension:MM

Typical Applications

• Saliva Analyzer
• Blood Analyzer
• Welding Machine
• Intelligent Security Products
• Fiber Fusion Splicer
• Digital Electronics

Specifications

Type of Wire Connect

Motor input method with Pin type,FPC, PCB, Lead wire etc.

These can be customized according to customer needs.

Shaft Type

Out shaft standard as follows,also can customerized due to the user drawings

welcome to contact customer service for more types

• Round Type : DIA3mm. 4mm. 5mm

• D-cut Type: DIA3-D2.5 DIA4-D3 etc

• Screw Type: M3 M4 M5 Serial

• Trape Type

• I-cut Type: DIA3-I2 DIA4-I3

• Other Type: Shaft with a hole etc

Type of Fixture Cover

The regular models are shown in the figure, and the special sizes can be customized.

Product Detail Presentation
