    N20 Micro DC Brush Motor Horizontal Gear Reducer For Shared Bicycle Smart Lock、Safe Box、 Ad Equipment

    Ask Lasest Price
    Brand Name : VIC-TECH
    Model Number : N20-1812 Gear Motor
    Certification : CE, ROHS
    Price : $3.2~$6/unit
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 1000000Units per year
    Delivery Time : 15-30 work days
    • Product Details
    • Company Profile

    N20 Micro DC Brush Motor Horizontal Gear Reducer For Shared Bicycle Smart Lock、Safe Box、 Ad Equipment

    3- 12V N20 Micro DC Brush Motor Horizontal Gear Reducer For Shared Bicycle Smart Lock

    N20 is a DC gear motor made of precious metal brushed DC motor and precision metal reducer.
    6V 20mm DC motor with brush geared motor for door locks and 3D printers, N20 DC geared motor with beautiful appearance, small size, light weight, easy installation, long life, low noise technology, high energy saving rate, zero momentum, large torque and High precision.
    1:10*12*18mm gearbox with N20 permanent magnet DC motor
    2: In line with EU environmental protection standards. Low energy consumption and low noise
    3: Can be equipped with encoder. The number of pulses is 3ppr
    4: Reduction ratio: 1:118 1:236 1:603
    5: The product is suitable for: electronic door locks, smart switches, steam hair straighteners (water straightening), label strippers, smart wear, smart machine 3D printing equipment products, hair curlers, safes, electric screwdrivers, display stands, etc. Wait
    Our team has more than 10 years of experience in micro-motor design, development and production, and can realize product development and auxiliary design according to the special needs of customers!
    Customer needs are our efforts, please feel free to contact us!

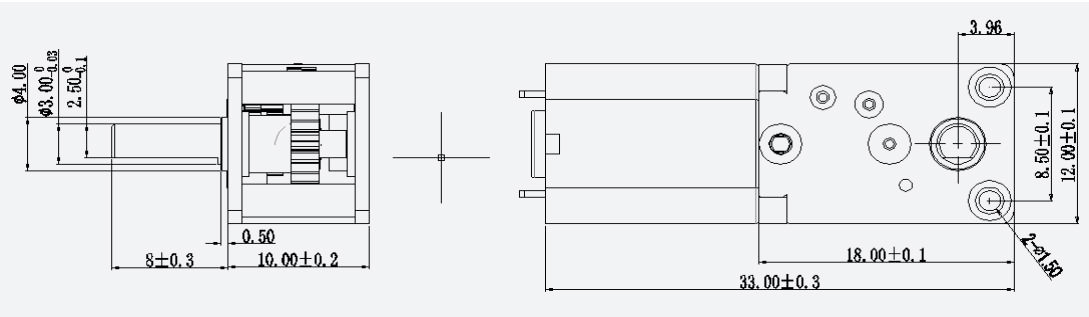

    Mechanical Dimension:MM

    Typical Applications

    • Office Automatic Equipments
    • Printer/paper Feeder
    • Bank Equipments
    • Safe Box
    • Ad Equipment
    • Household Appliances
    • Electtric Door Locks

    Specifications


    Product Name10mm micro stepper motor
    ModelN20 Gear Motor
    Rated Voltage3~12 V
    Current Per Phase130mA /phase
    Insulation ClassClass E for Coils
    Gear Ratio1:21 1:42 1:118 1:236 1:302 1:399 1:515 1:603 1:798 1:1030
    Operating Temperature Range-0~+55 ℃
    Weight14g
    OEM & ODM SERVICEAVAILABLE


    Product Detail Presentation
