15BYhigh torque 15mm micro stepper motor 5vDC customizable
reduction ratio metal gear box geared motor
SM15-50G-9D5 is a combination of 15MM diameter micro stepper motor
and 10*12 precision metal reducer, and the reduction ratio can be
customized according to customer needs.
The basic step angle of the motor is 18 degrees, that is, 20 steps
per revolution, plus the deceleration effect of the gearbox, the
final motor angle resolution can reach 0.05~6 degrees, which can be
used for various needs
Precise control over the rotational position of the field.
1:5 1:3 1:20 1:10 1:380 1:30 1:50 1:63 1:150 1:298 1:420, customers
can match the speed ratio according to different torque and speed
requirements, and use the Appropriate stepper motor drive frequency
can achieve a certain speed and torque.
The output shaft of the motor can also be customized according to
customer needs

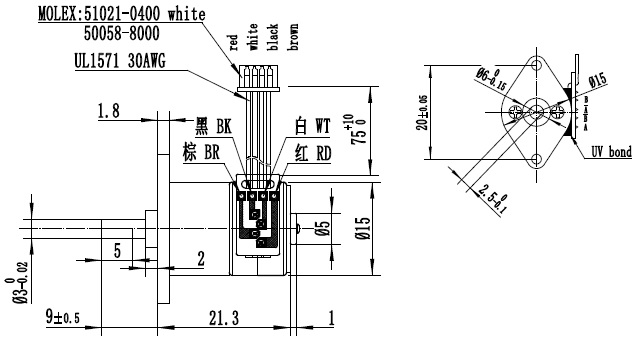

Mechanical Dimension:MM
Technical Features
This product gear box uses the most advanced equipment in the
international processing related parts, so the high precision, high
efficiency, low noise, and the use of reasonable and reliable
process, make the product has better reliability.
The power input part and standard stepper motor can be used as
probe structure, FPC, FFC, PCB cable and other forms.
Part of the output of the motor can be used in a variety of output
structure, such as the circular axis, D axis, and the wire rod!
Typical Applications
- Saliva Analyzer
- Blood Analyzer
- Welding Machine
- Intelligent Security Products
- Fiber Fusion Splicer
- Digital Electronics
Specifications
| PRODUCT NAME | 15mm geared stepper motor |
| MODEL | SM15-50G-9D5 |
| RESISTENCE | 31Ω±7% |
| Phase | 2phase |
| Step Angle | 18 degree |
| Current / phase | 1.5A |
| OPERATING TEMPERATURE RANGE | -0~+55 ℃ |
| OEM & ODM SERVICE | AVAILABLE |
Product Detail Presentation
Torque Curve For Reference
Type of Wire Connect
Motor input method with Pin type,FPC, PCB, Lead wire etc.
These can be customized according to customer needs.
Shaft Type
Out shaft standard as follows,also can customerized due to the user
drawings
welcome to contact customer service for more types
Round Type : DIA3mm. 4mm. 5mm
D-cut Type: DIA3-D2.5 DIA4-D3 etc
Screw Type: M3 M4 M5 Serial
Trape Type
I-cut Type: DIA3-I2 DIA4-I3
Other Type: Shaft with a hole etc
Type of Fixture Cover
The regular models are shown in the figure, and the special sizes
can be customized.
